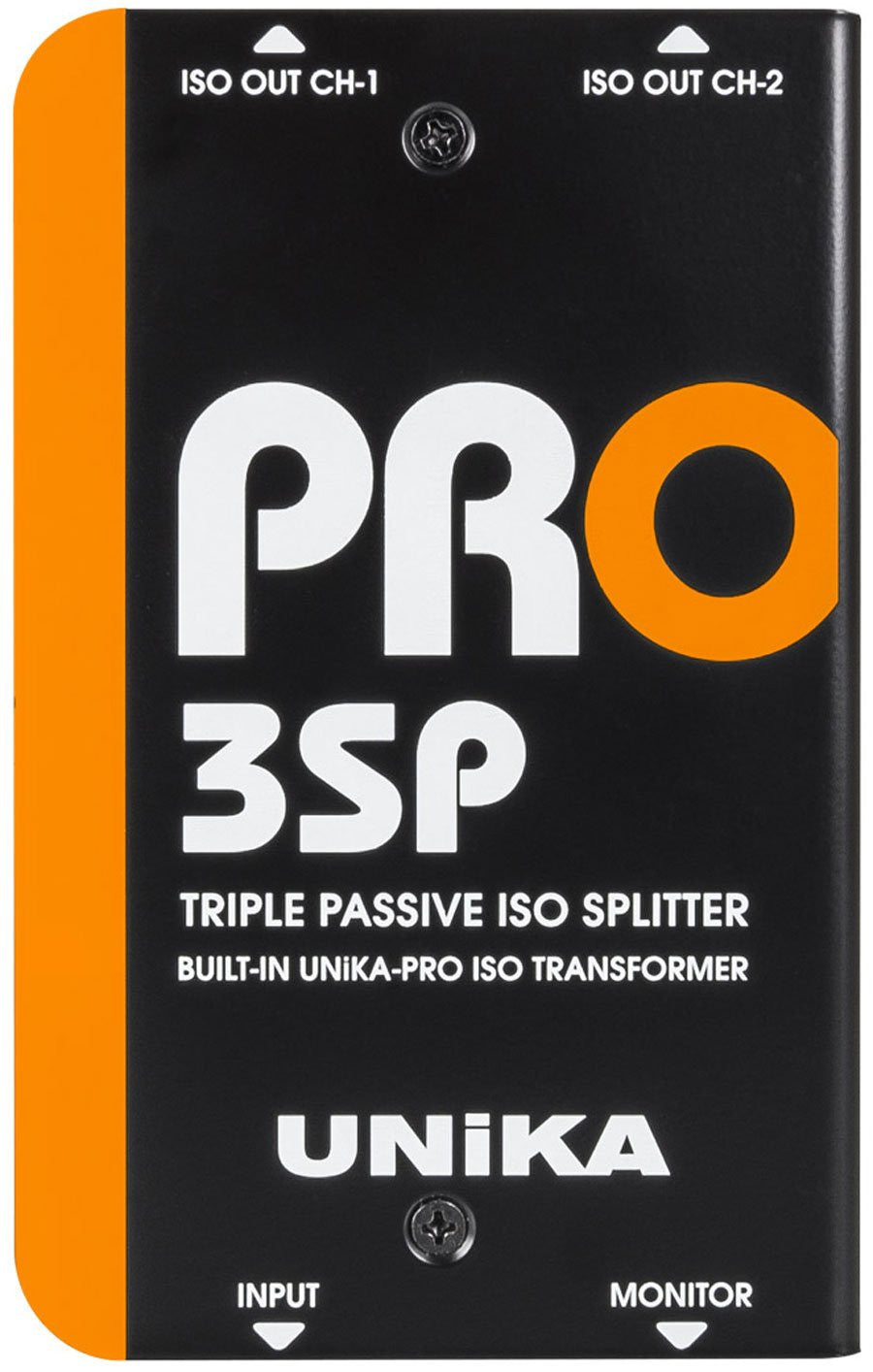

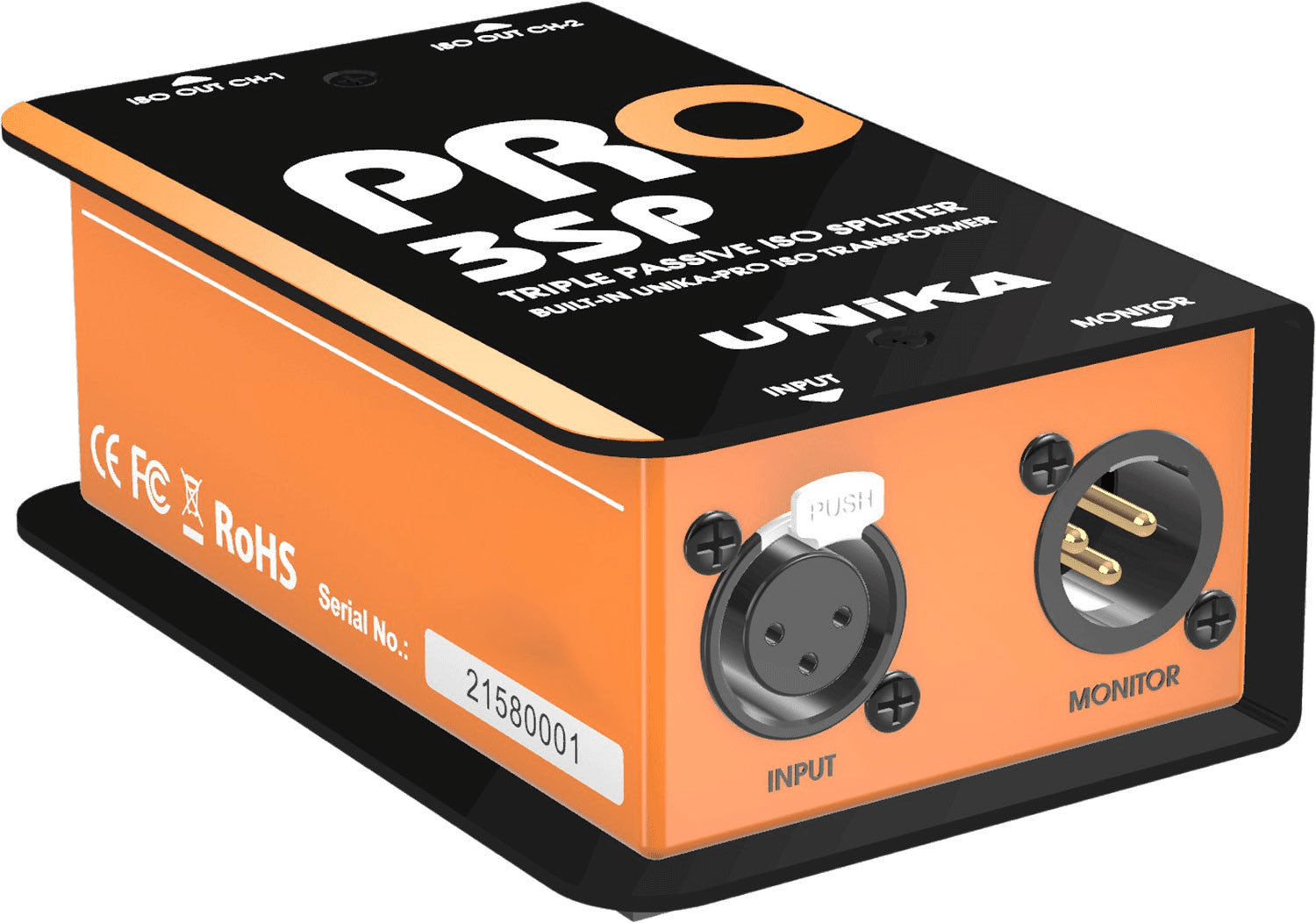

Passive 1-In / 3-Out Signal Splitter
UNiKA PRO-3SP is a passive balanced splitter with one XLR input, one direct monitor output and two transformer-isolated XLR outputs. It is designed for stage, studio and fixed-installation signal distribution without batteries or phantom power.
Isolated Outputs
The two ISO outputs each use an independent UNiKA-PRO EI9AE3R3 1.25:1 isolation transformer. The direct MONITOR output is connected in parallel with the input and is not transformer isolated.
Features:
- 1 balanced XLR input

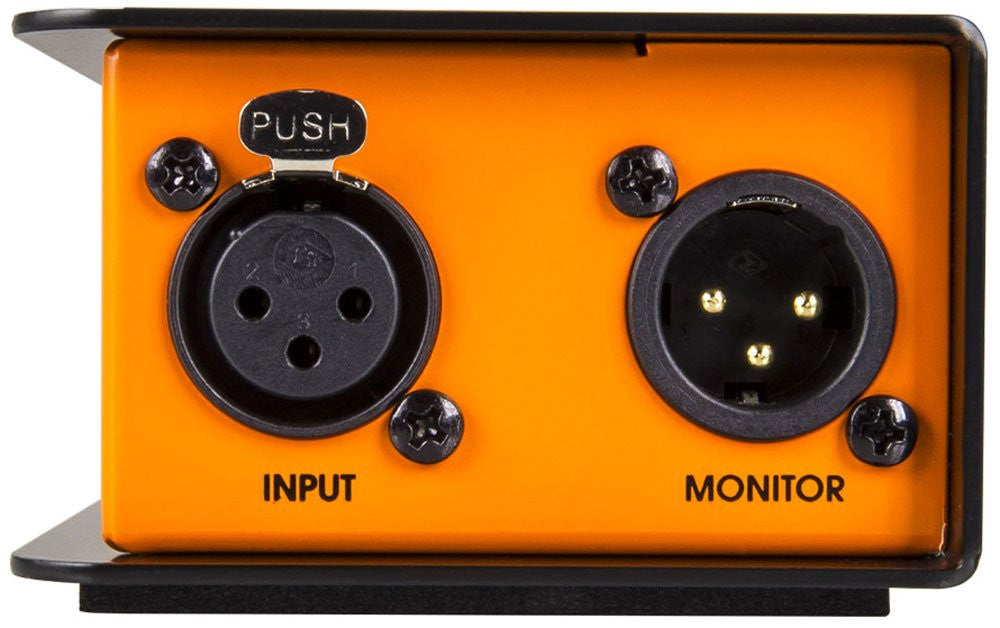

- 1 direct XLR monitor output

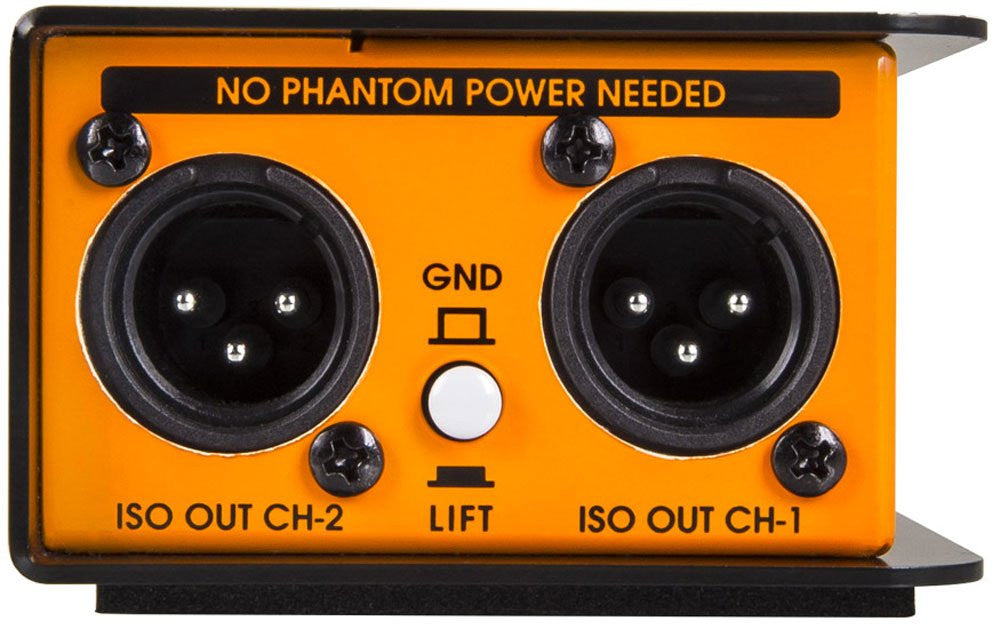

- 2 transformer-isolated XLR outputs
- Shared GND/LIFT switch
- Passive operation

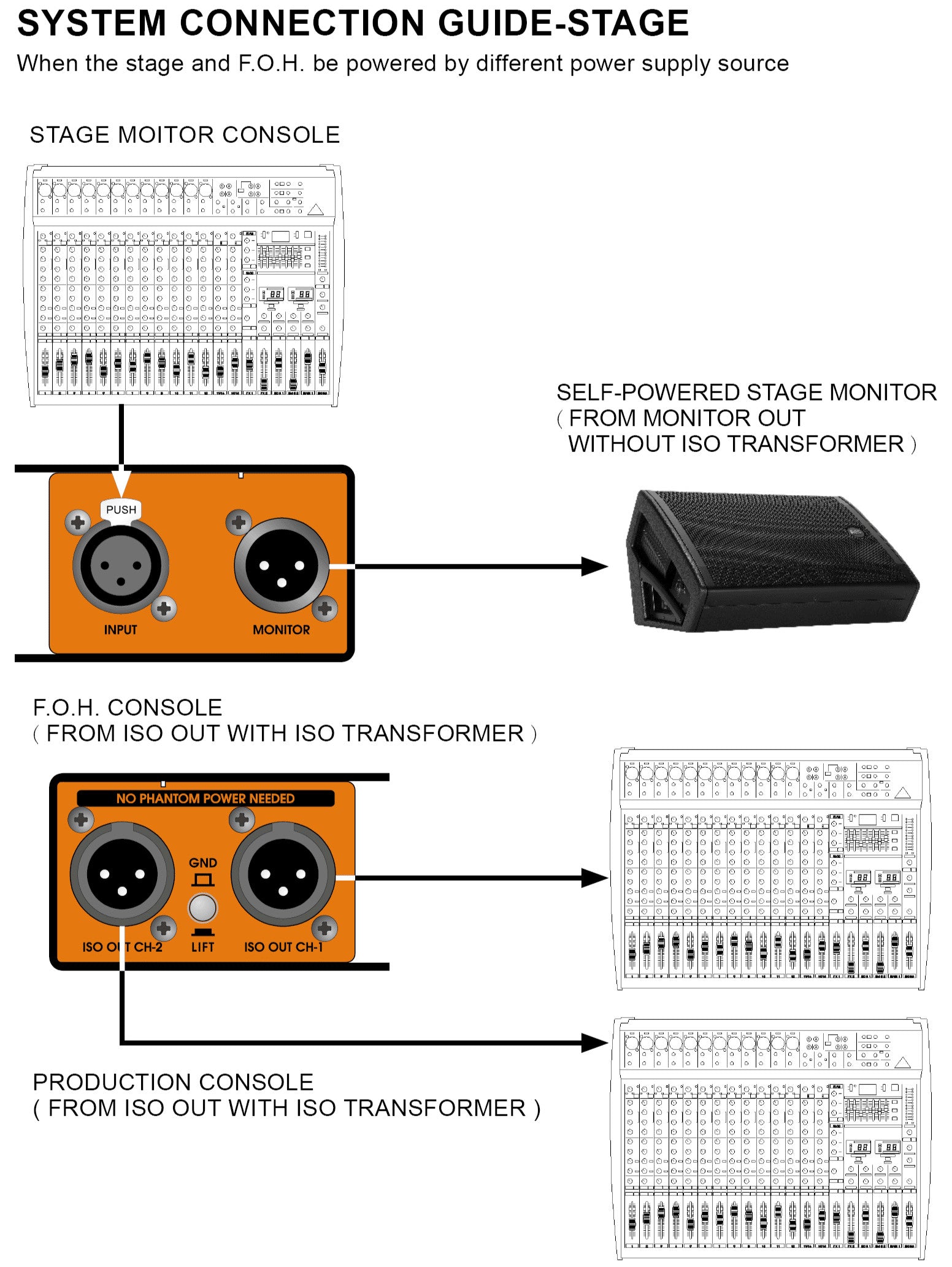

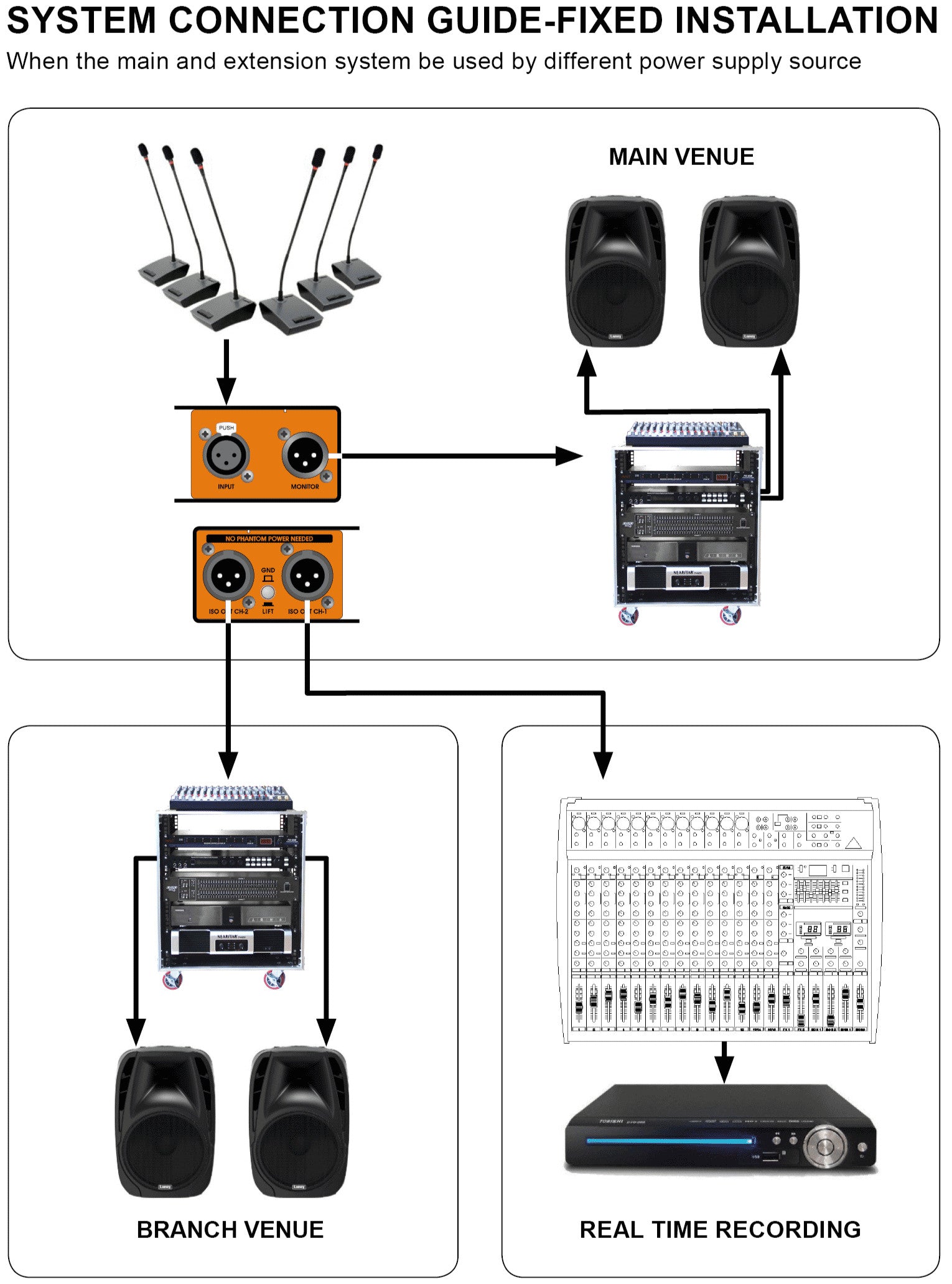

- Suitable for stage, studio and fixed installation
