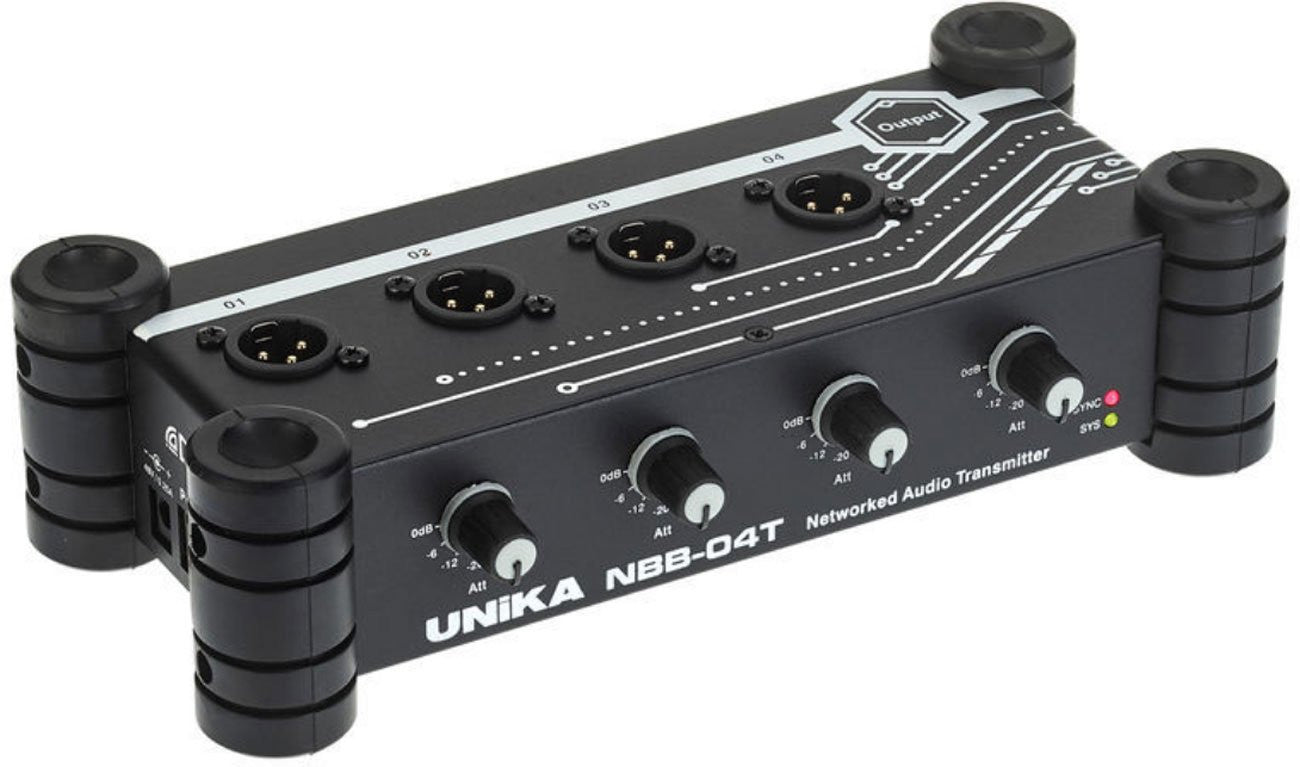

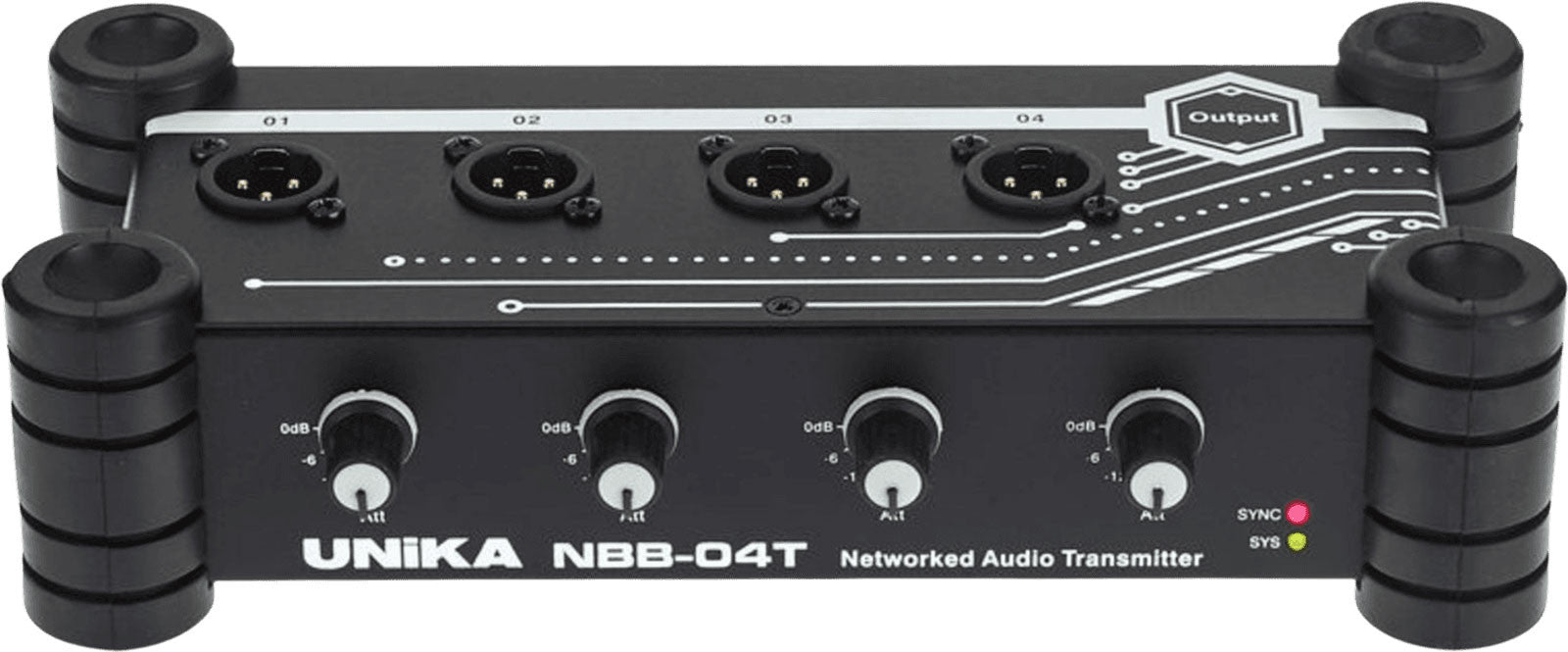

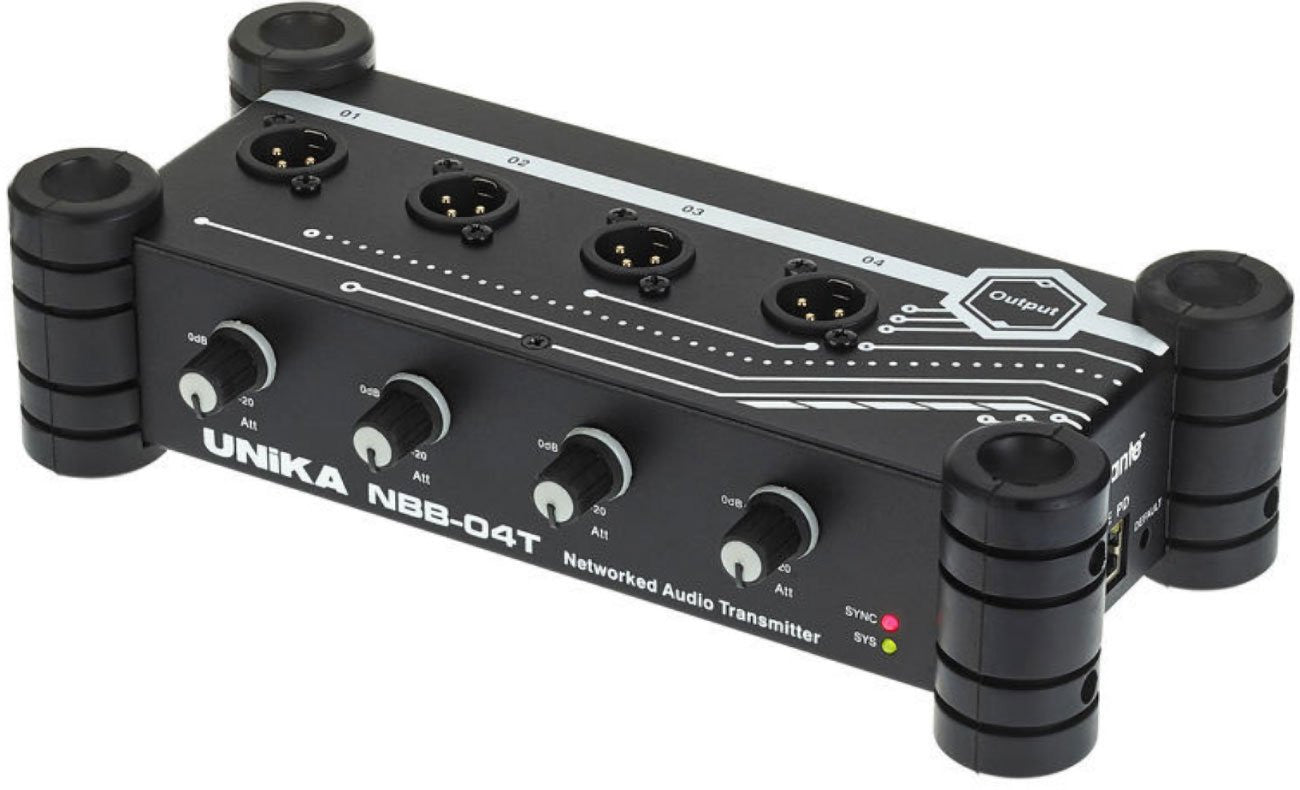

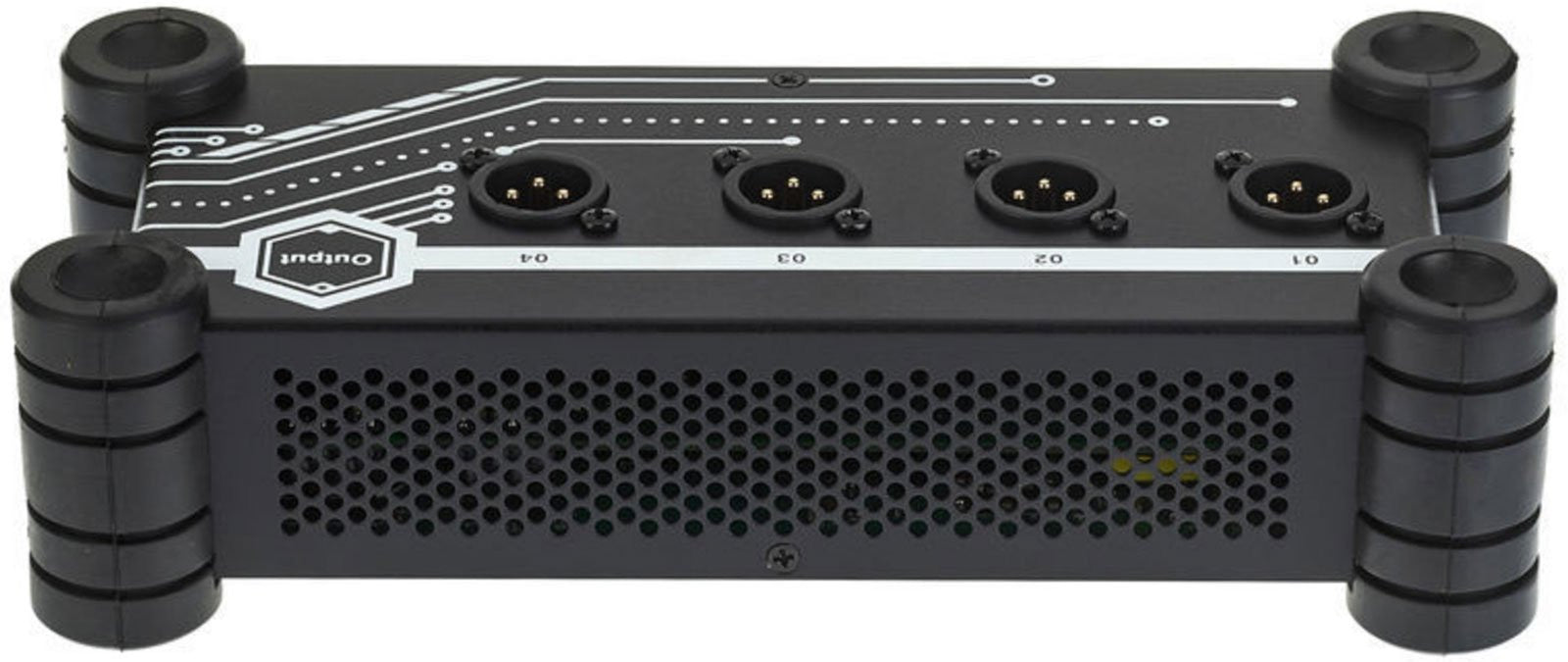

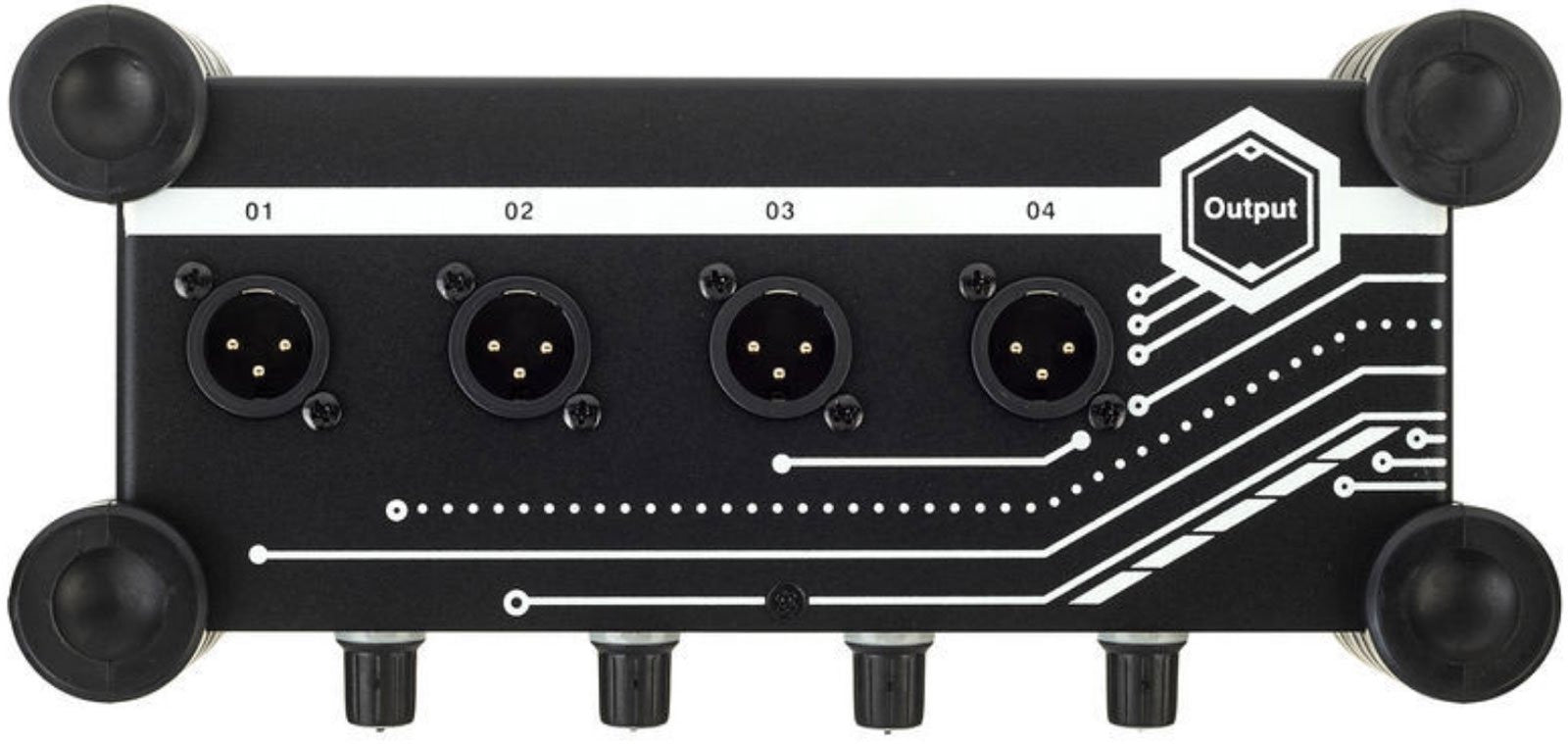

The NBB-04T transmits 4 channels of analog audio converted from Dante networked audio streams distributed from other Dante-enabled devices such as digital audio consoles or DAWs.

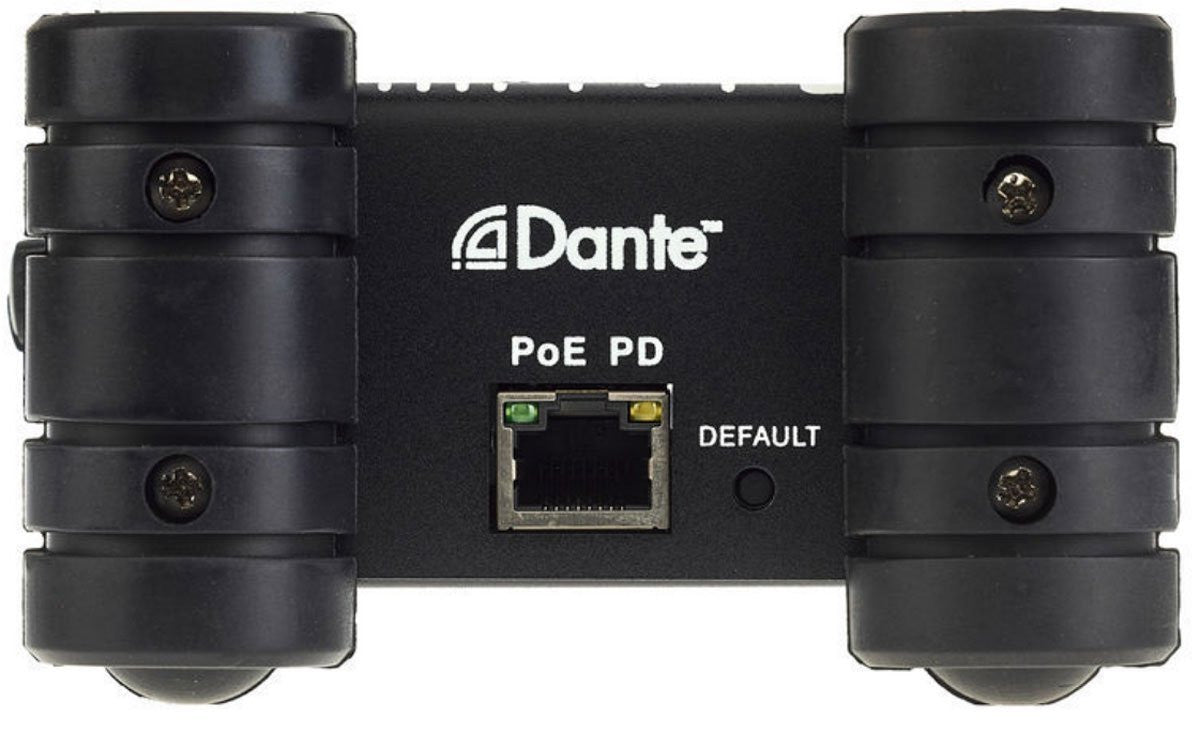

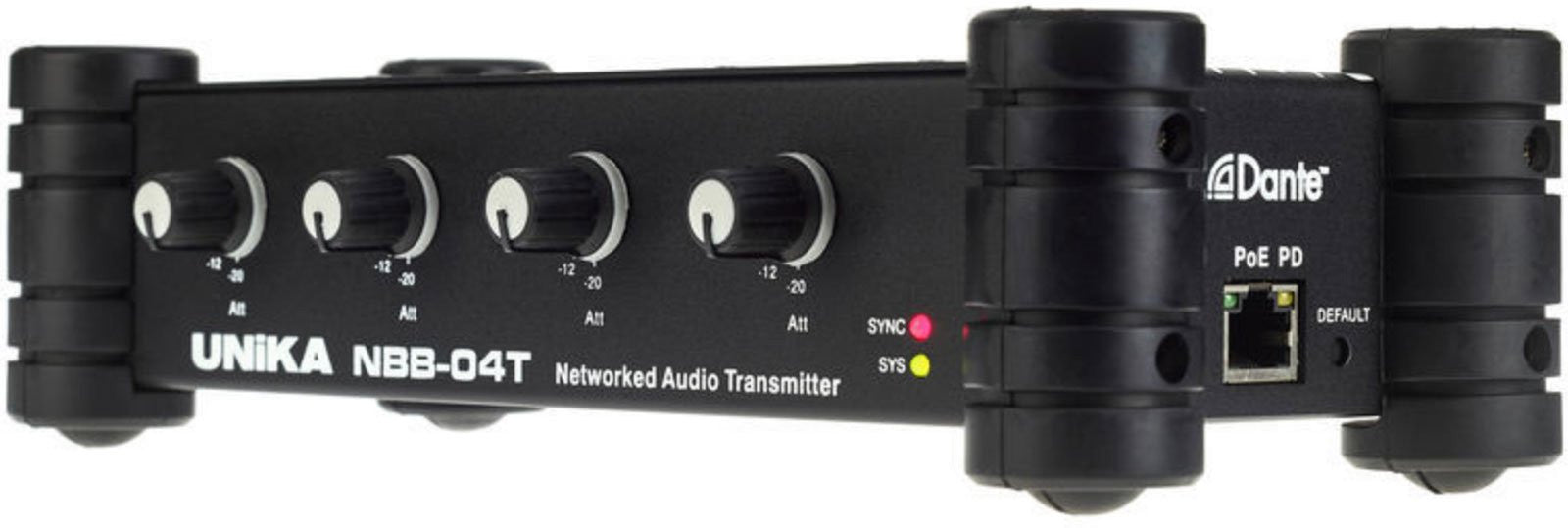

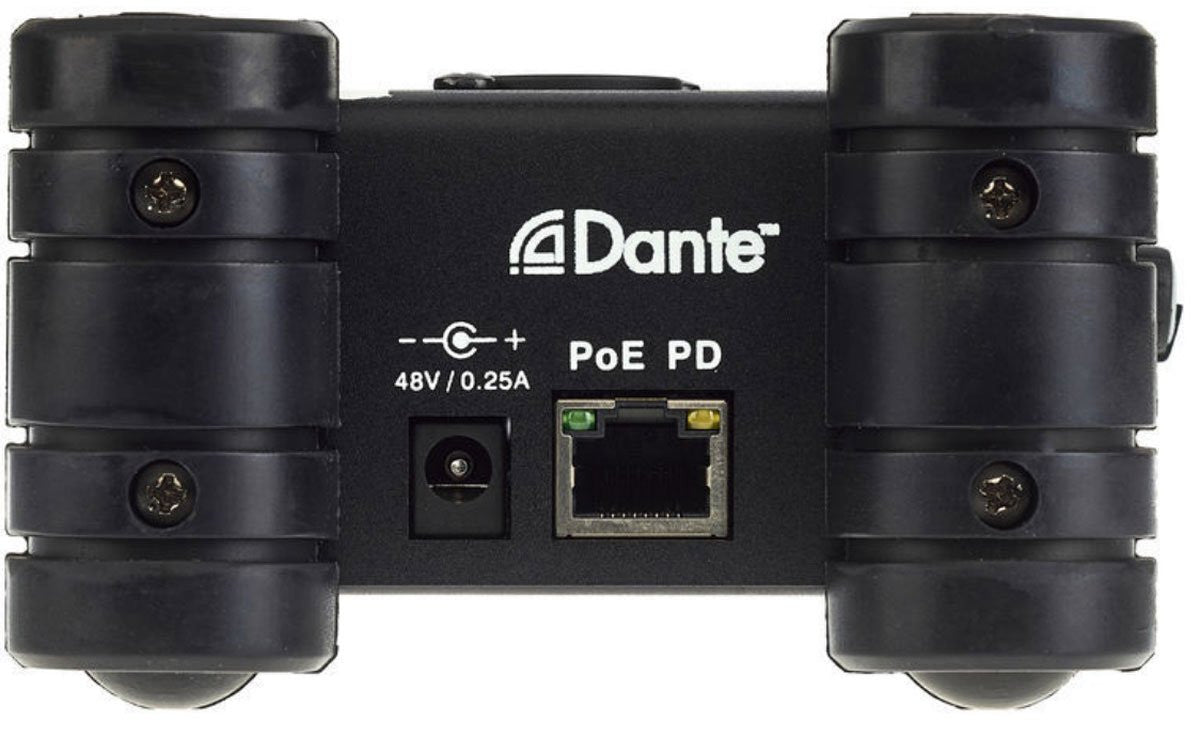

It is equipped with two RJ-45 Ethernet ports, allowing multiple NBB-04T units to be cascaded in a daisy-chain configuration within the same network link. The device can be powered either via PoE from an Ethernet switch or by a 48V external power adapter.
The NBB-04T adopts Audinate Dante networking technology for audio transmission and is highly network-friendly with virtually unlimited flexibility in deployment topology. Supporting up to Layer 3 of the IEEE 802.3 network standard, it enables you to organize your audio network with standard Ethernet switches or transport streaming audio seamlessly across your existing infrastructure. With its dual Ethernet ports, several units can be physically cascaded within the same network link, further enhancing flexibility and scalability in audio networking.
Features:
- Dante-enabled networked Audio Transmitter
- Streaming audio in robust standard Ethernet cable (a.k.a., Digital Snake)
- Easily organize and expand network topology with Ethernet switches
- Uncompressed 24-bit PCM coding with sample rate up to 96KHz
- Two RJ-45 ports make Daisy-chain cascading feasible

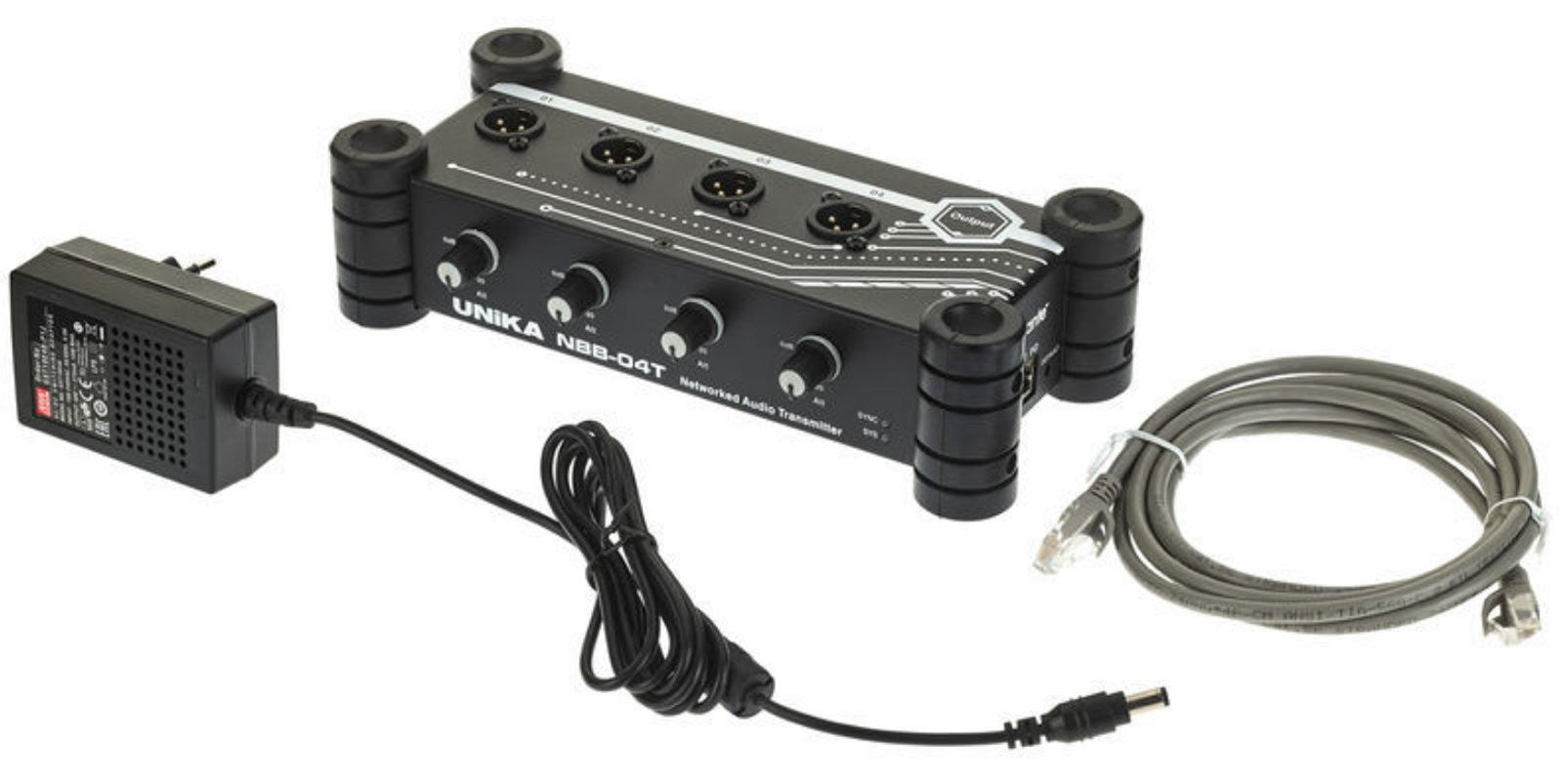

- Powered by either PoE or 48V adapter

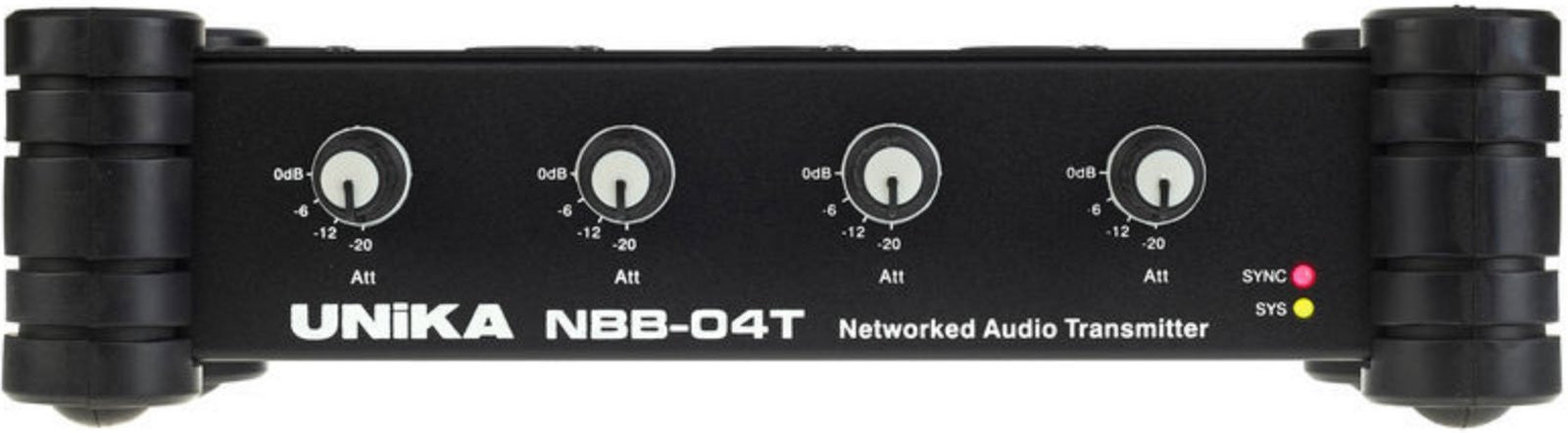

- Gain or Attenuate control for each channel
- Routing and other configuration are set with Dante Controller software
