2 x 2 Dante Audio Interface

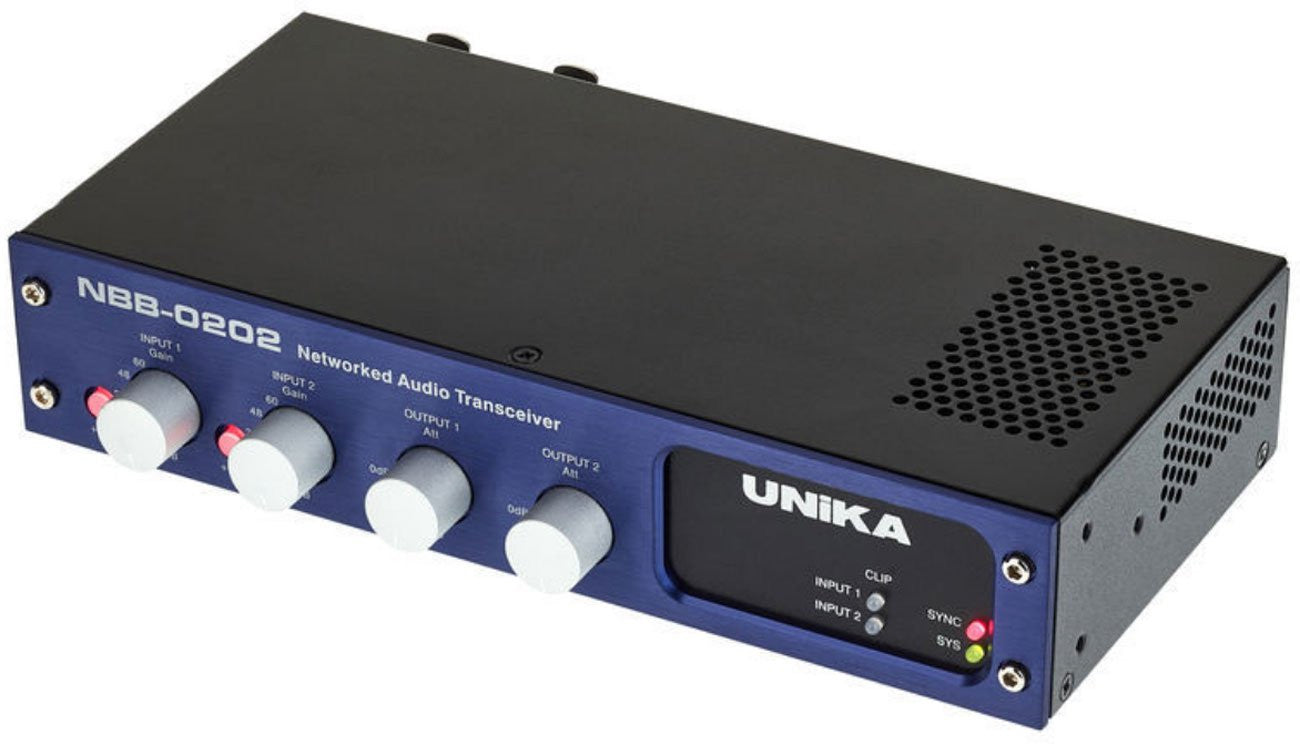

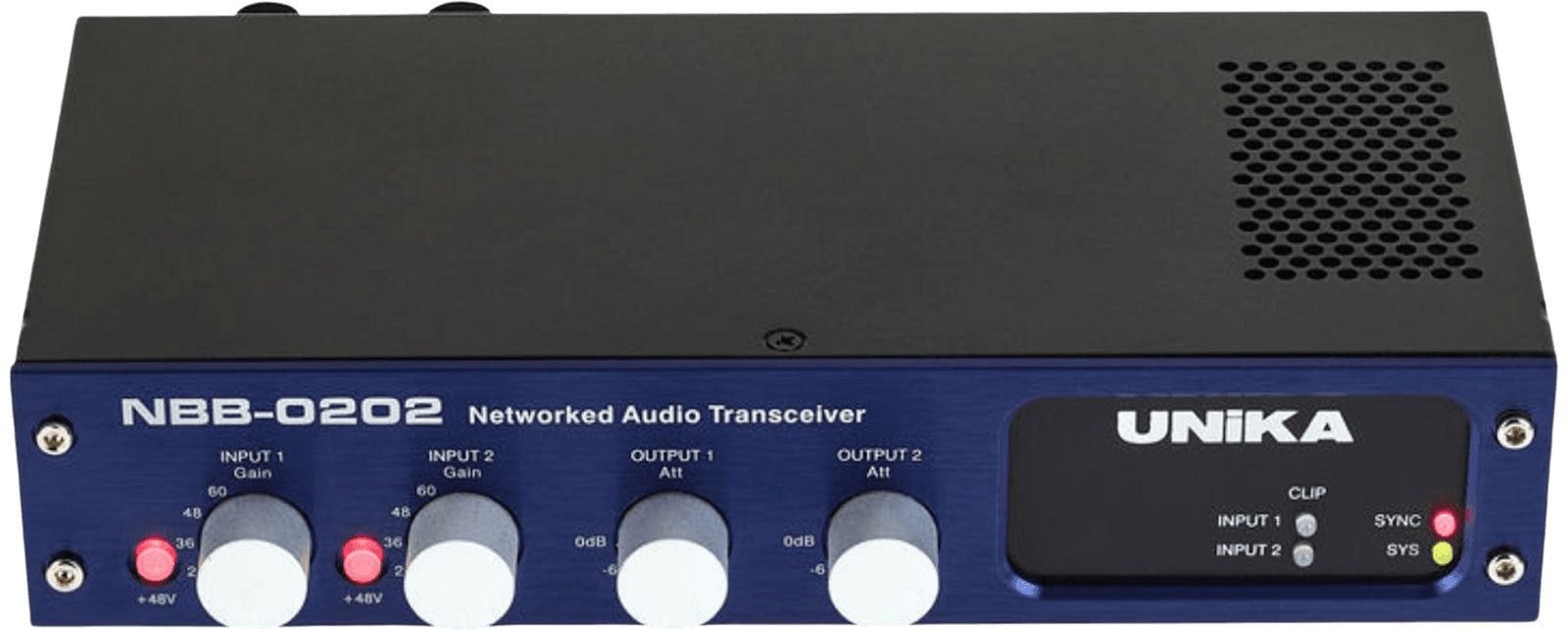

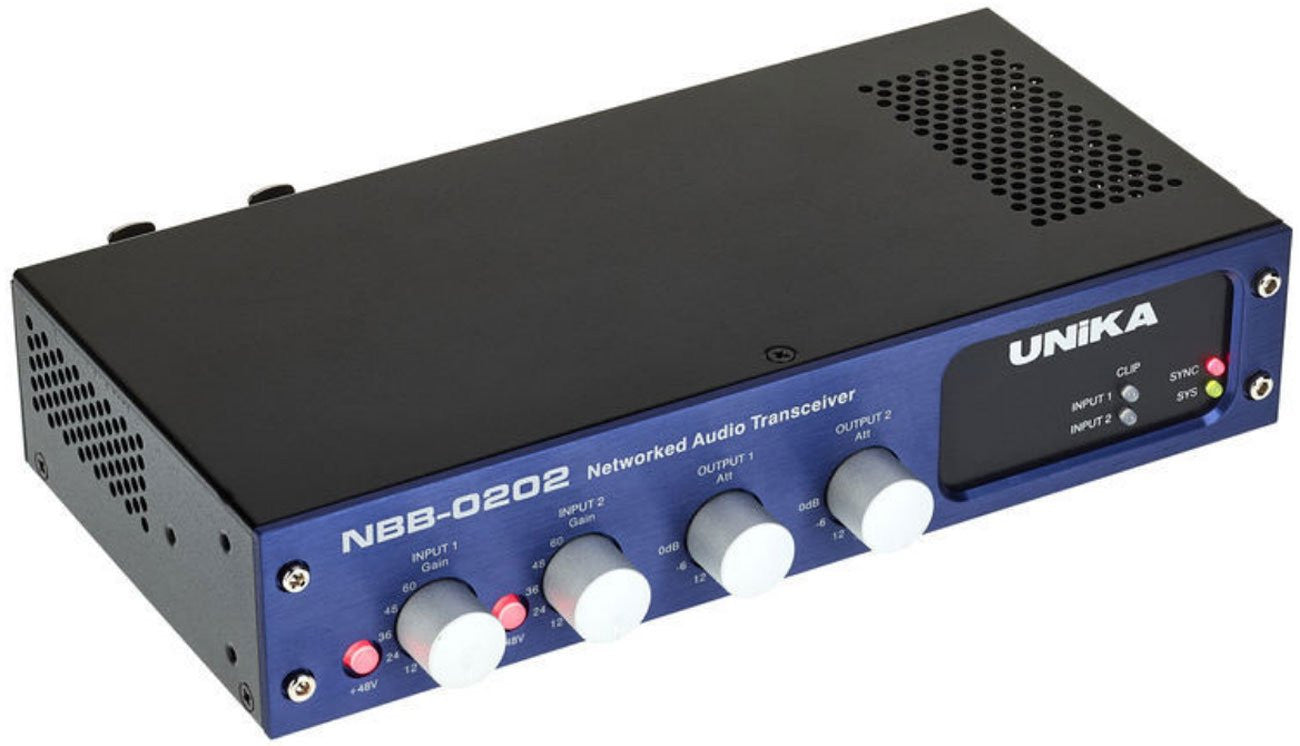

UNiKA NBB-0202 is a bidirectional Dante interface with two analog inputs and two analog outputs. The combo inputs accept microphone and line-level sources, while the balanced XLR outputs provide up to 24 dBu.
Flexible Networking

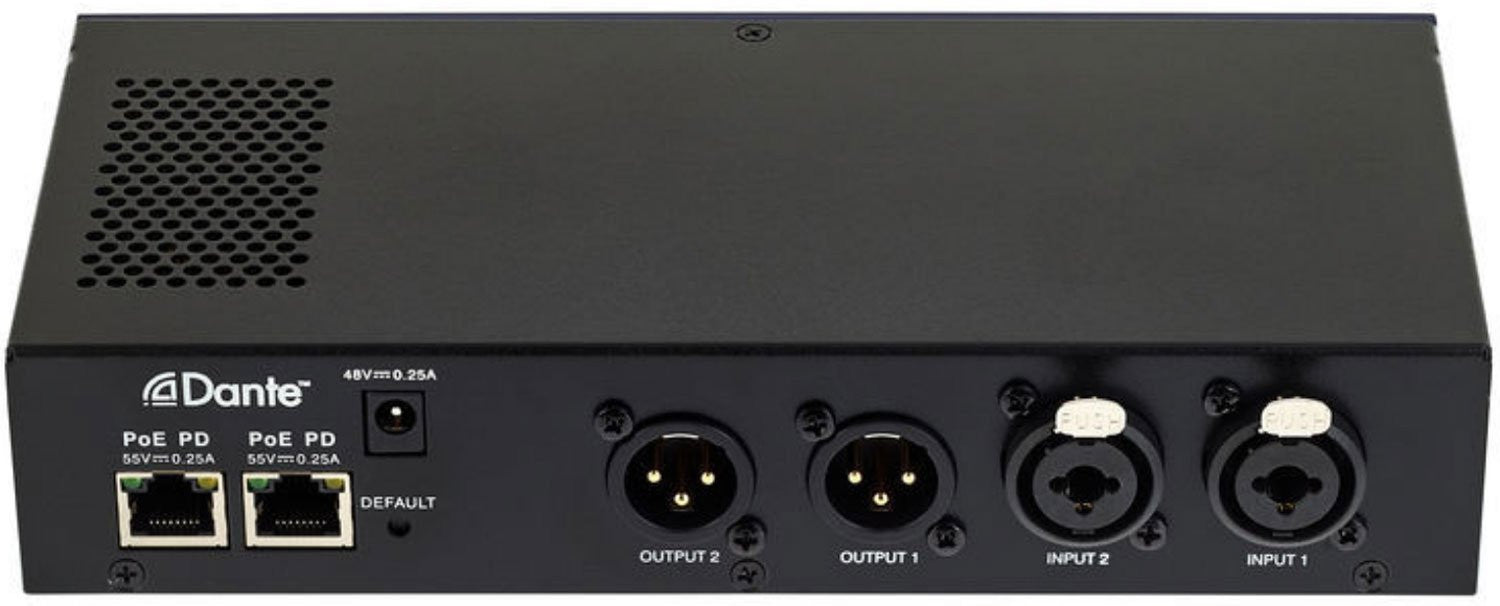

Two Gigabit Ethernet ports support daisy-chain operation. The unit can be powered by PoE or an external 48 V DC adapter, and routing is configured with Dante Controller.
Professional Conversion
The NBB-0202 uses uncompressed 24-bit PCM at 44.1, 48 or 96 kHz. Each input has 60 dB gain control, switchable +48 V phantom power and a clip indicator, while the outputs provide level attenuation.
Features:
- 2 analog inputs and 2 analog outputs
- 24-bit Dante audio up to 96 kHz
- 2 x Gigabit RJ45 ports
- PoE or 48 V DC power
- Per-input gain and phantom power

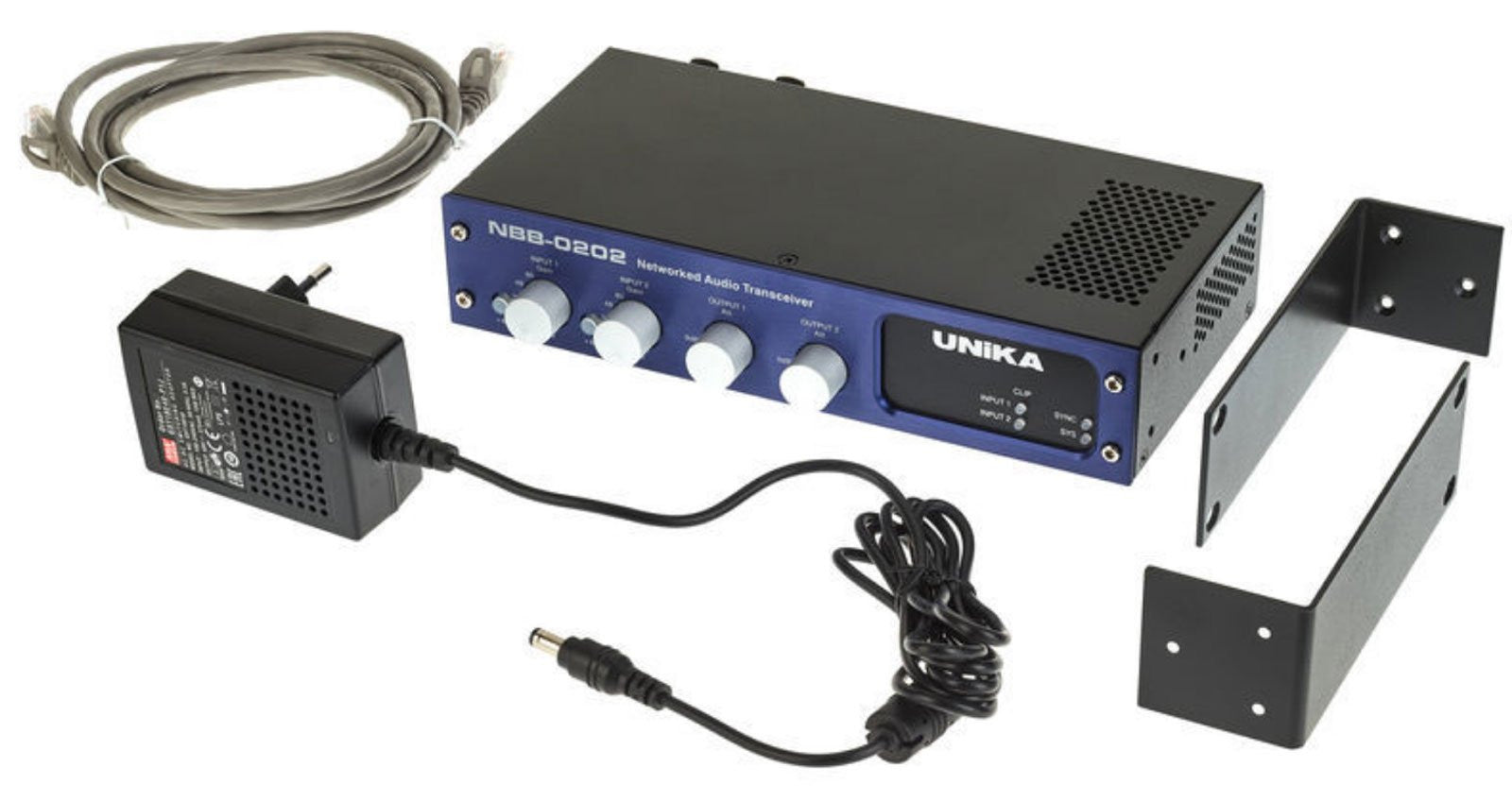

- Rack-mount kit included
