TF47

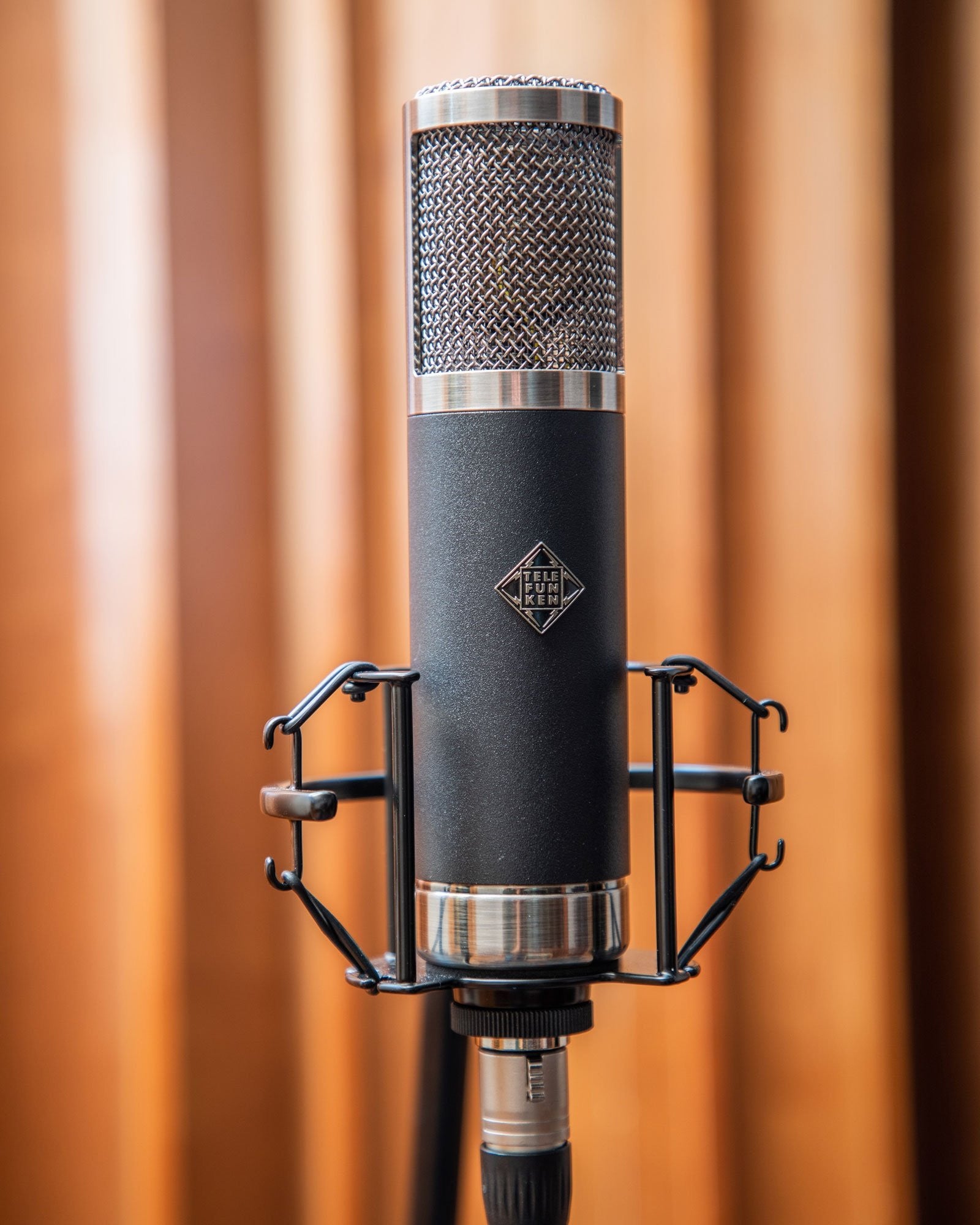

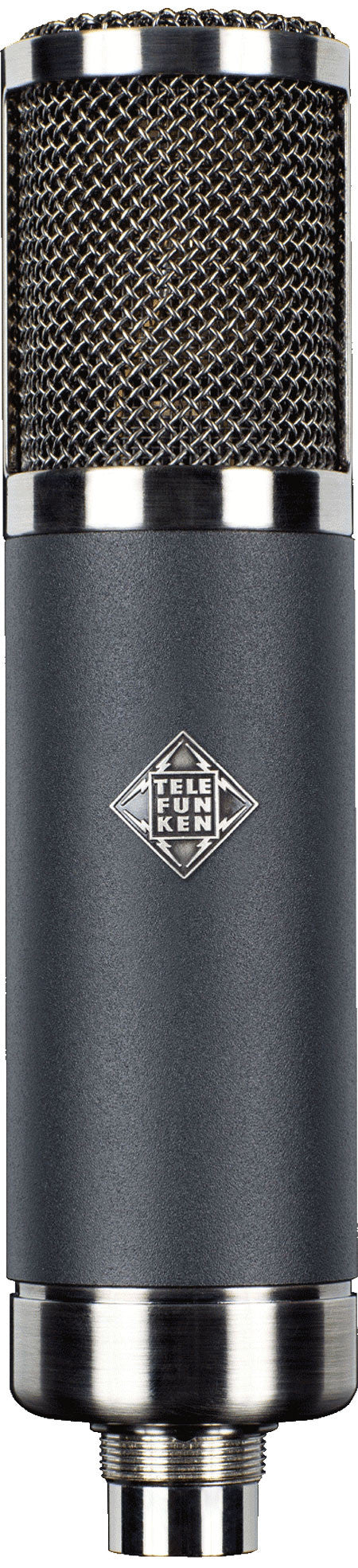

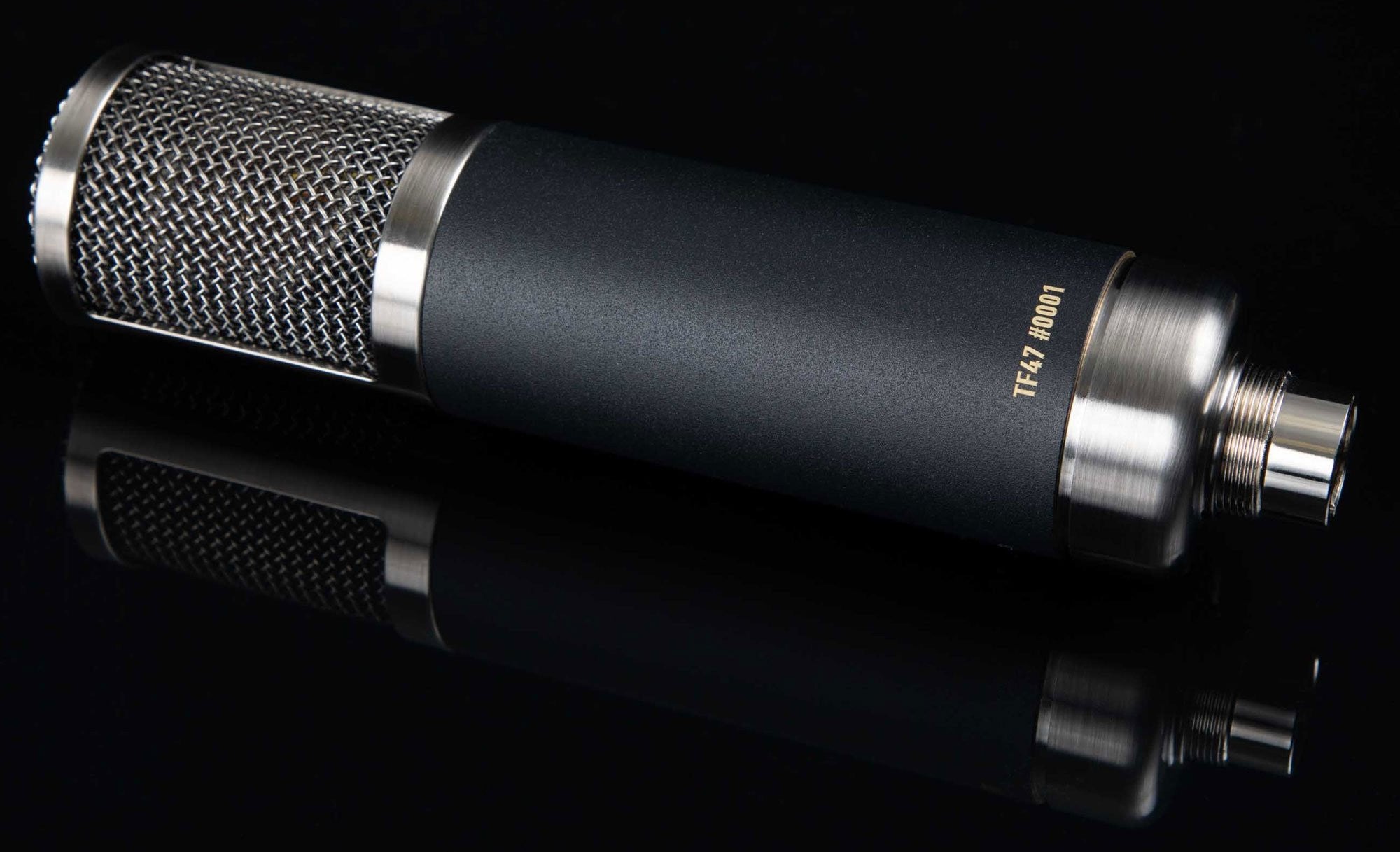

The TF47 is a large-diaphragm, multi-pattern tube condenser microphone inspired by the classic German microphone sound associated with designs such as the U47 and M49. Its full low end, forward midrange and smooth top end add weight and presence while keeping detail intact, making it especially effective on vocals, piano, drums, trombone, bass and cello.
Circuit Design

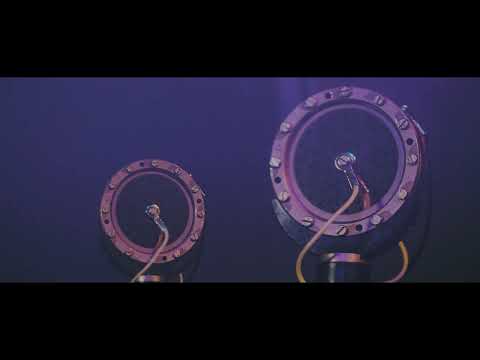

The TF47 uses a TELEFUNKEN TK47 K47-style center-terminated large-diaphragm capsule, a NOS Philips/Raytheon 5840W vacuum tube and a custom TELEFUNKEN BV8 output transformer. Together these components produce a warm, punchy response with strong low-frequency body, present mids and smooth high-frequency articulation.
Key Features:
- Full low end and forward midrange inspired by classic U47-style voicing
- Smooth and detailed high-frequency response
- Selectable cardioid, omnidirectional and figure-8 polar patterns
- NOS Philips/Raytheon 5840W vacuum tube
- TK47 K47-style capsule and TELEFUNKEN BV8 output transformer
- Designed and hand assembled in the USA
- Recommended applications: vocals, piano, drums, trombone, bass, cello
Accessories

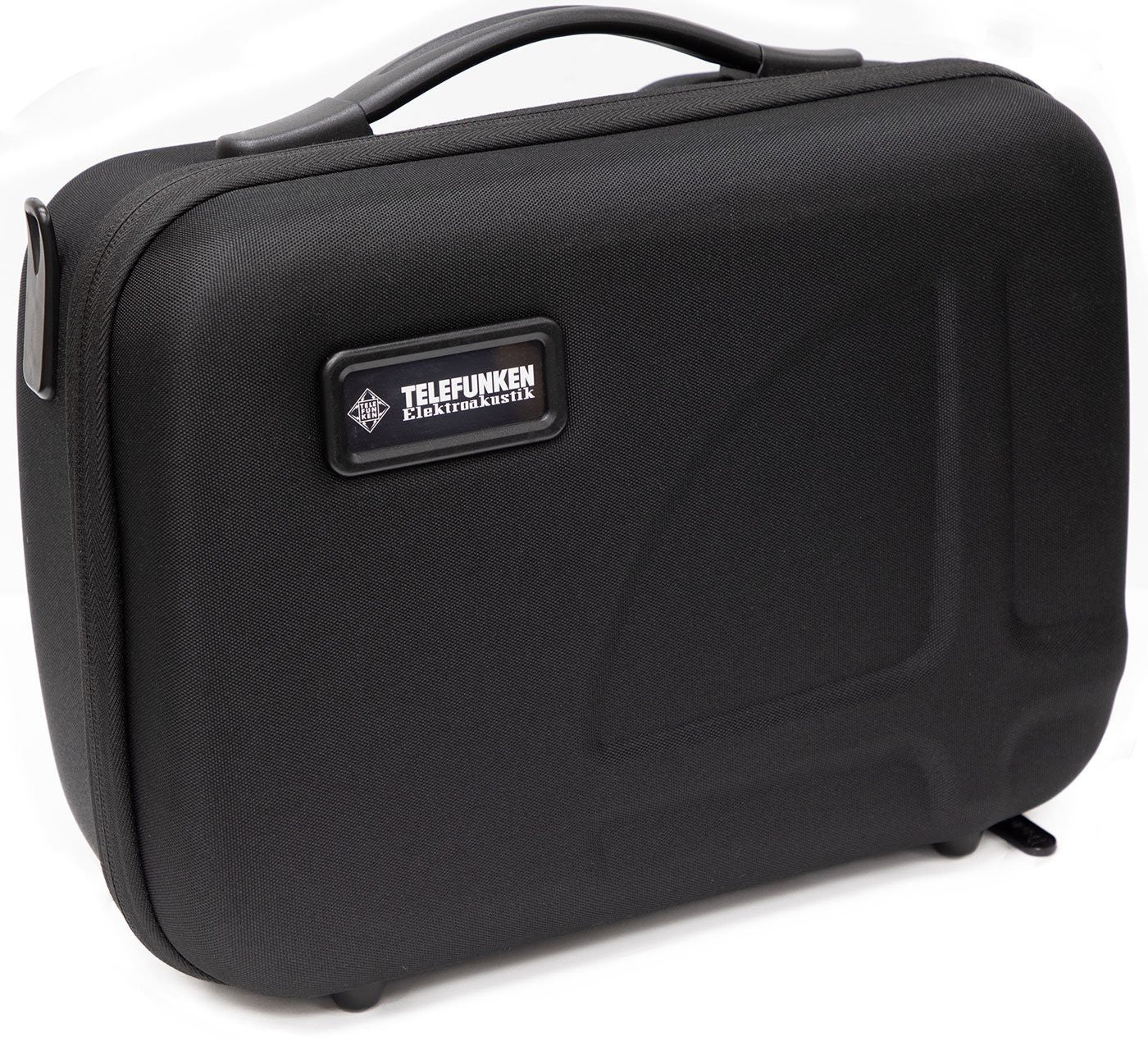

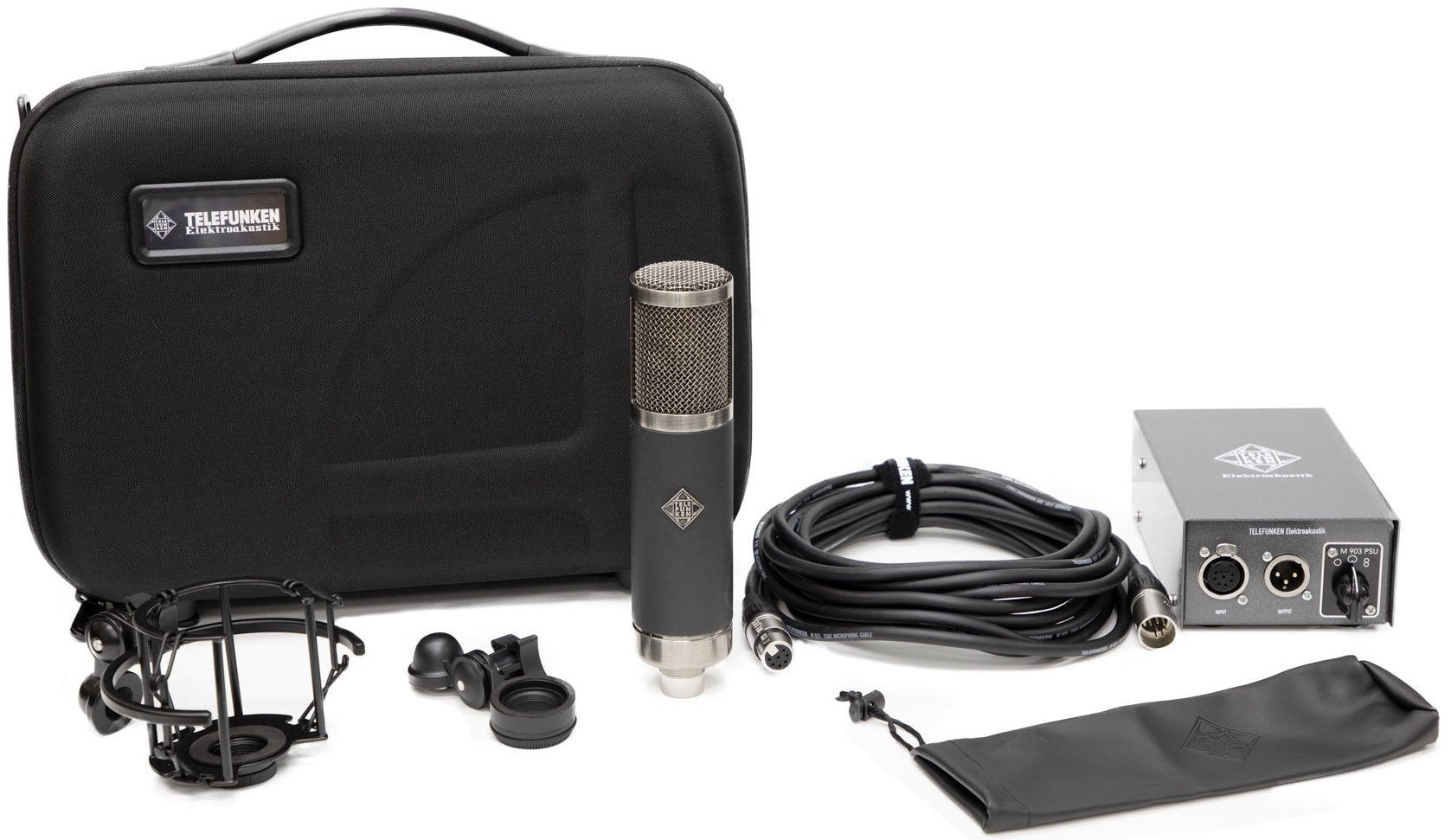

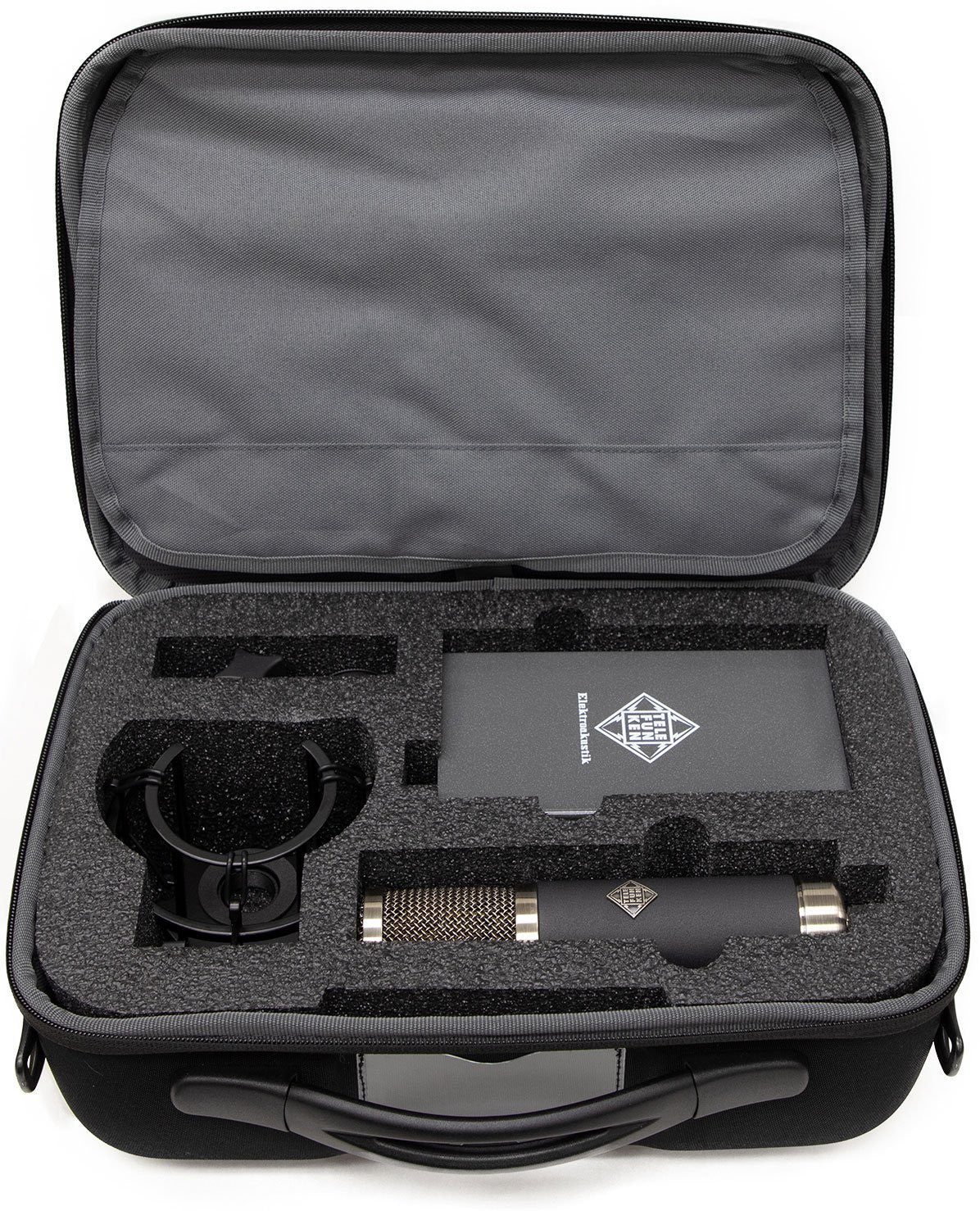

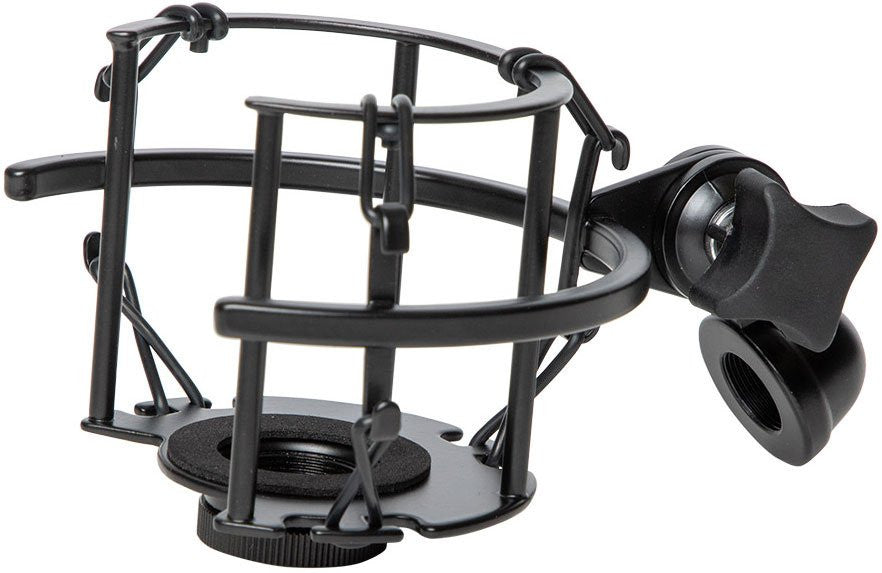

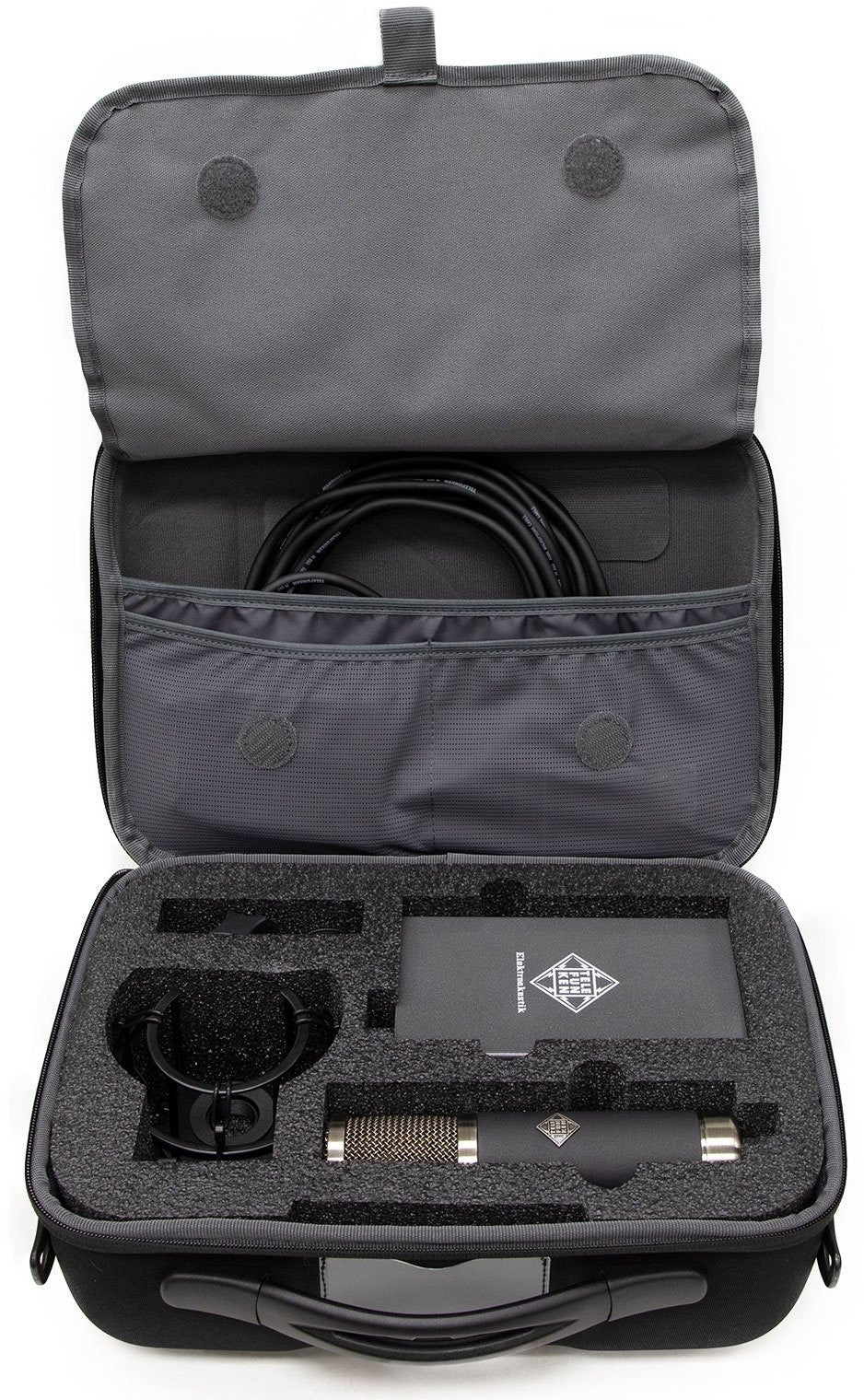

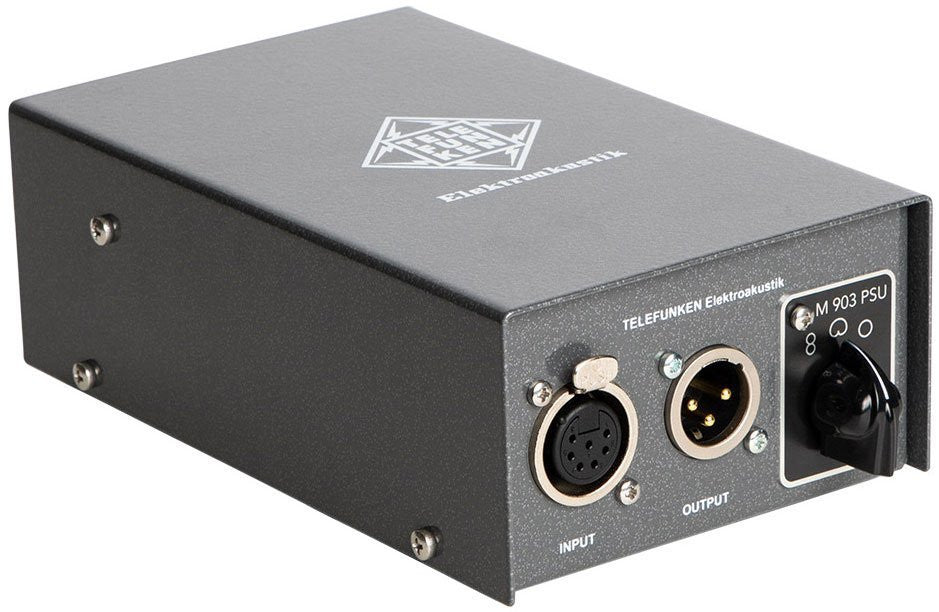

Each TF47 system includes an M903 power supply, M803 7 m tube microphone cable, ZC03 zipper case, M703 shock mount, M782 stand mount and MS01 microphone sleeve.
