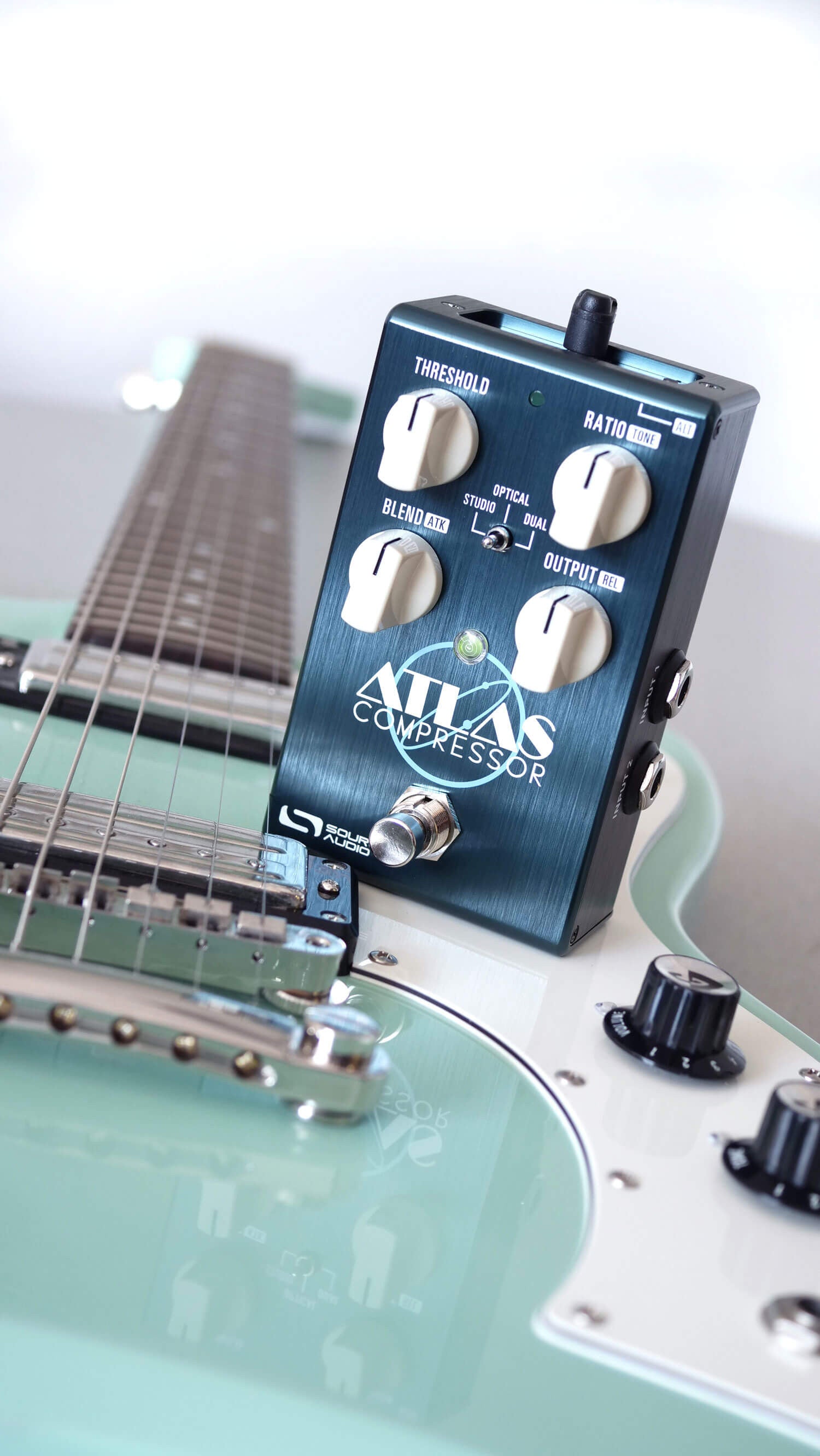

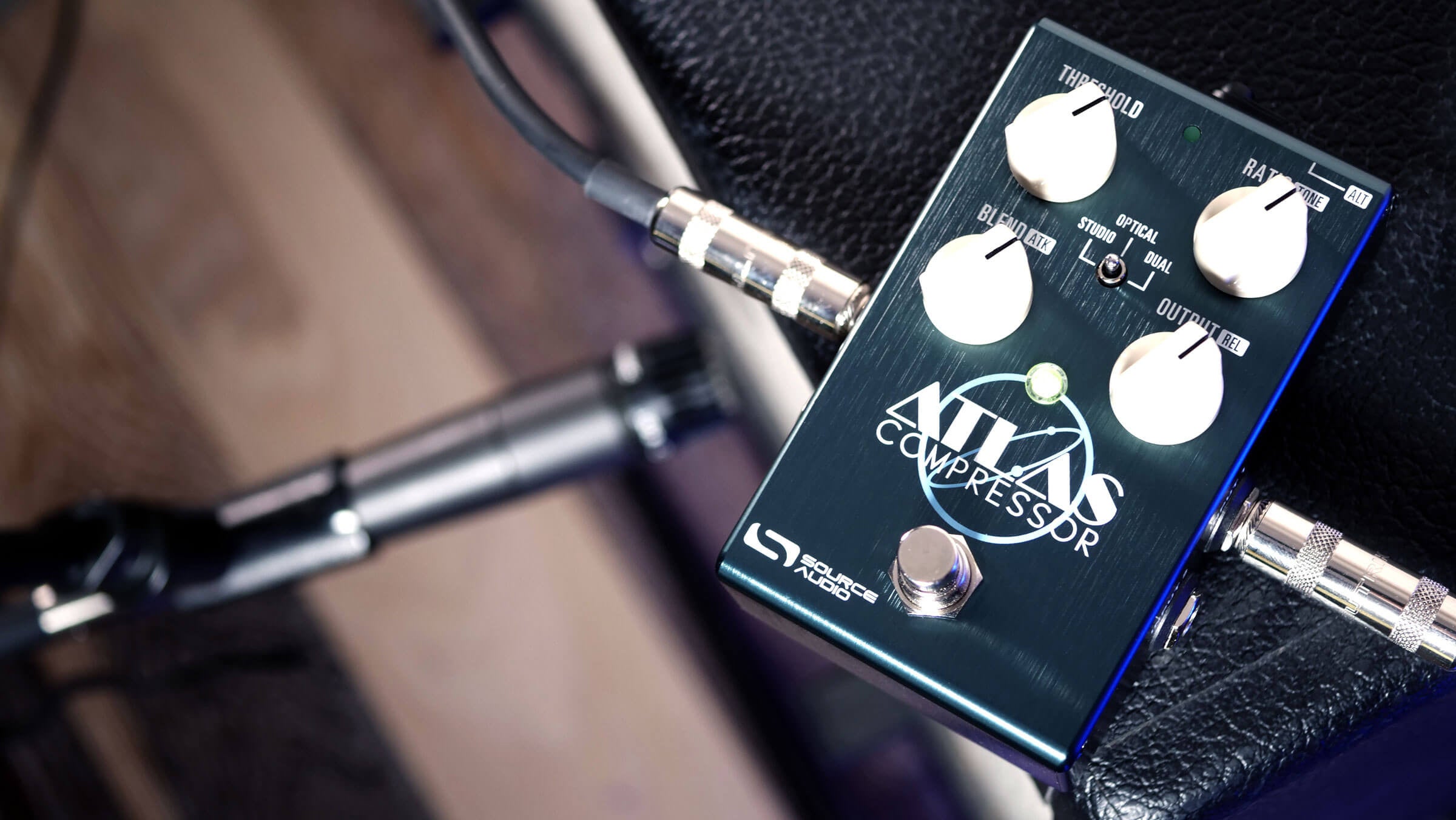

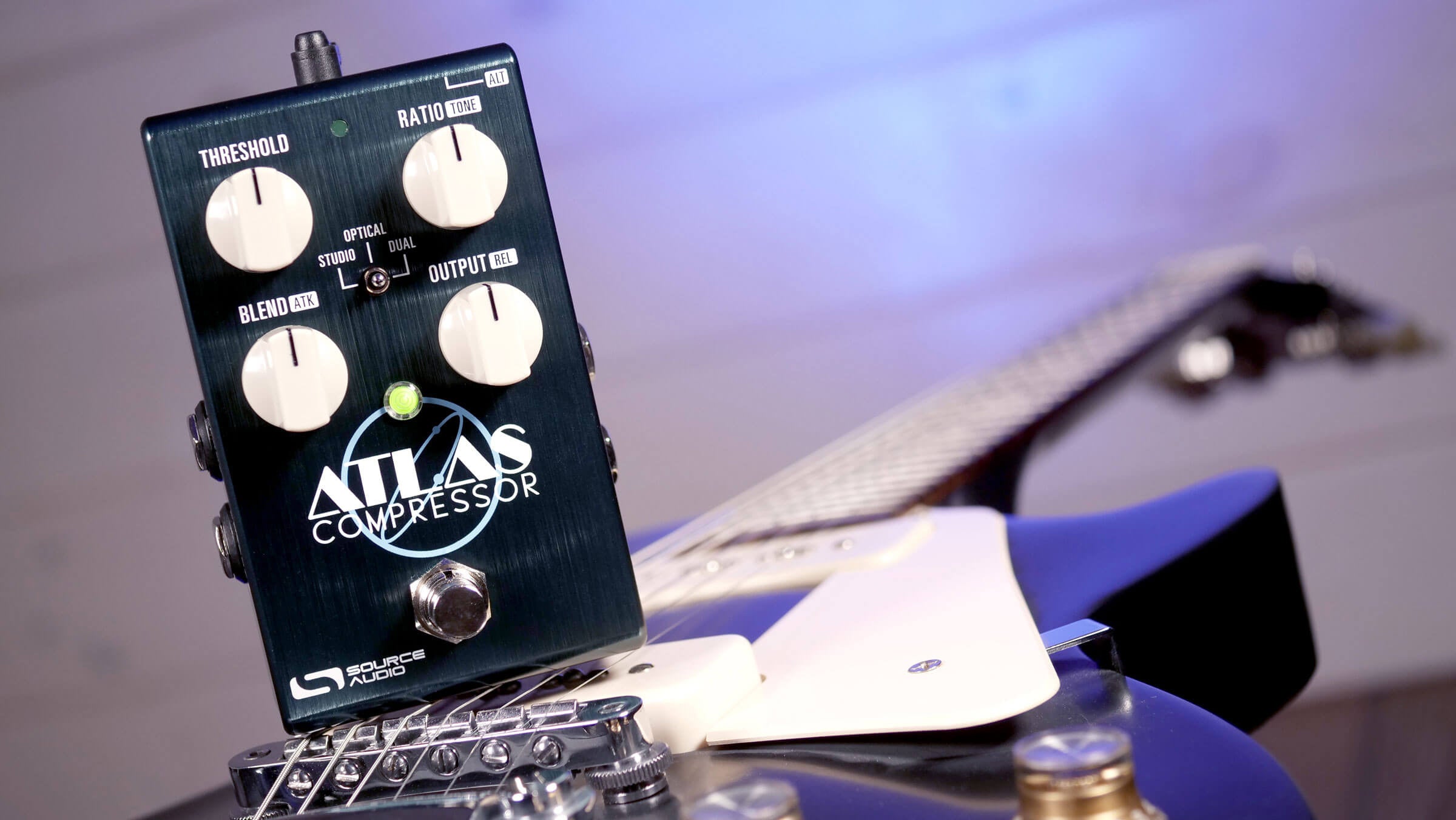

Source Audio Atlas Compressor – Versatile Multiband Compression Pedal
The Atlas Compressor from Source Audio is a powerful and flexible effects pedal that delivers a wide range of high-quality compression styles. Designed for guitarists and bassists, the Atlas includes six distinct compression engines, from classic pedal-based compressors to advanced studio rack-inspired units such as the LA2A optical compressor and the 1176 FET compressor.
It also offers dual-band compression with separate processing for high and low frequencies. Each engine includes user-adjustable controls for Threshold, Ratio, Attack, Release, Output, Tone, and Blend.
Compressor Engines Overview:
-
Optical Rack: Based on LA2A optical compression for smooth, natural dynamics.
-
Studio 76: Modeled after the 1176 FET compressor for quick, punchy response.
-
Cubic Zirconia: A fast-response optical compressor using LED technology for a more textured sound.
-
Studio Snap: Modern VCA-style compressor with parallel RMS and peak detection.
-
Dual Band: Splits the signal into high and low bands with separate compressors for precise tonal control.
Additional Features and Functionality:
-
Bass Optimization Mode: Tailors all six onboard engines for bass guitar by adapting attack, release, and crossover settings to the instrument's frequency range.
-
Deep Editing with Neuro: Connect to the free Neuro Desktop Editor or Mobile App (Mac, Windows, iOS, Android) for advanced editing tools and real-time parameter adjustment.
-
Dual Compressors: Operate in Series, Parallel, or Band Split modes.
-

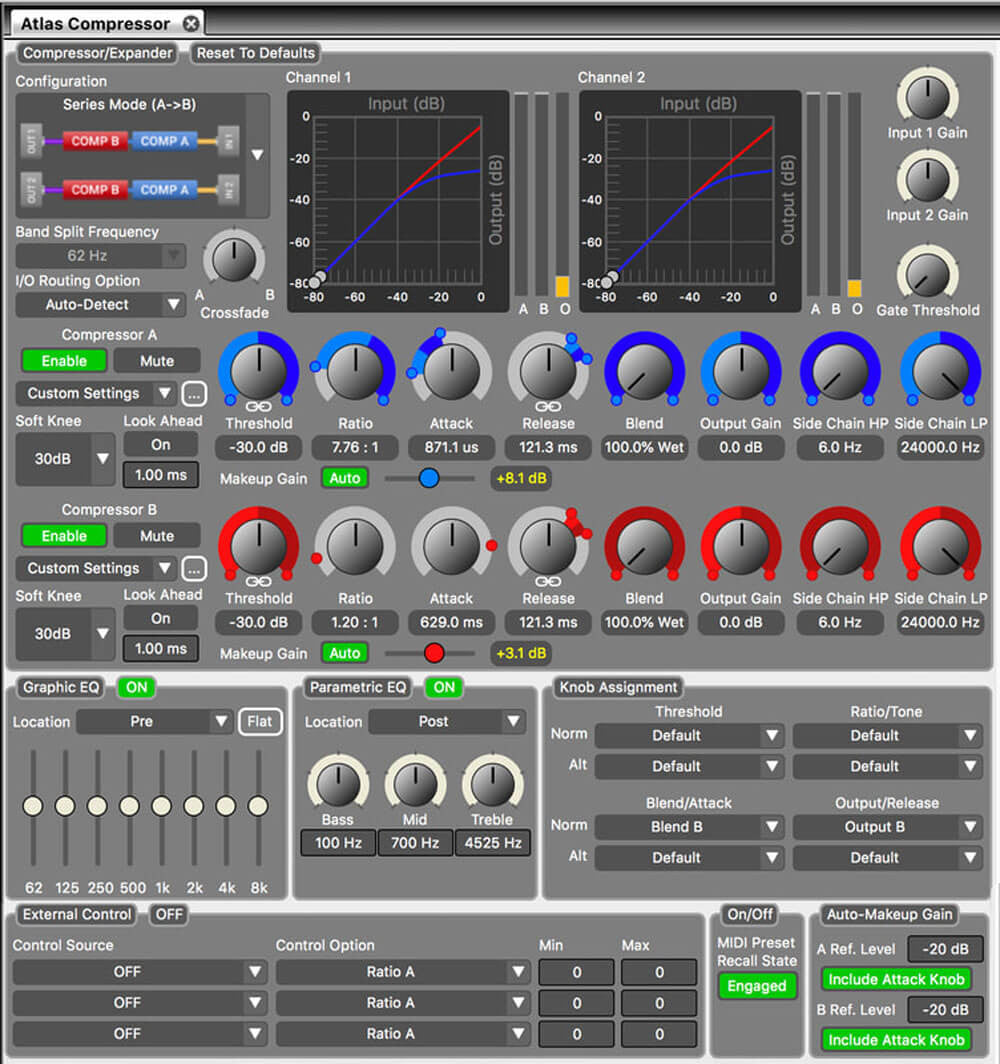

Real-Time Visual Feedback: Via Neuro Editor software, including gain reduction monitoring and advanced control routing.
-
Studio-Grade Tools: Includes Look Ahead compression, Soft Knee, Auto Makeup Gain, Parametric and Graphic EQs, flexible knob assignment, and sidechain filtering.
Features:
- 6 built-in compression engines inspired by industry-standard pedals and studio hardware
- Studio-level compression controls: Feedback, Ratio, Attack, Release, Makeup Gain, Mix, and Tone

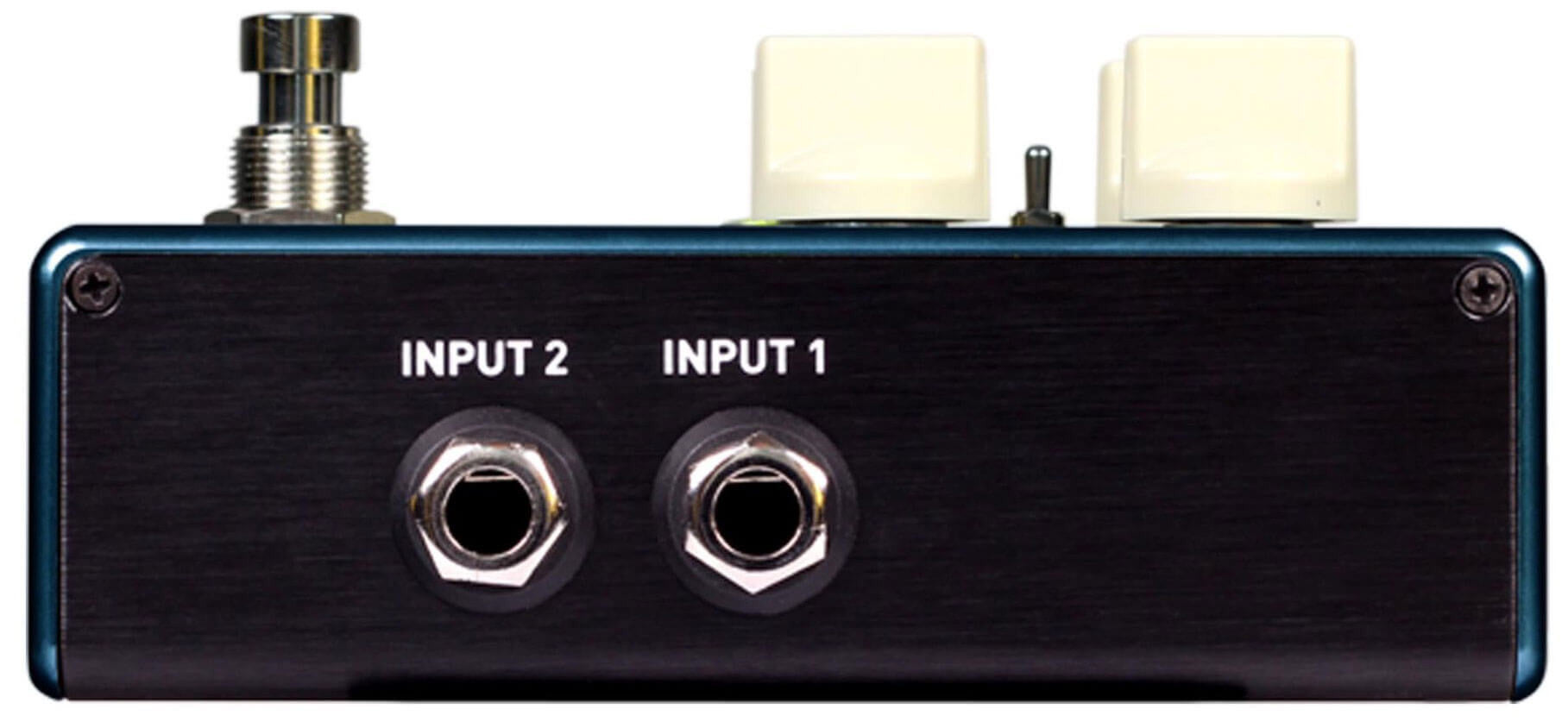

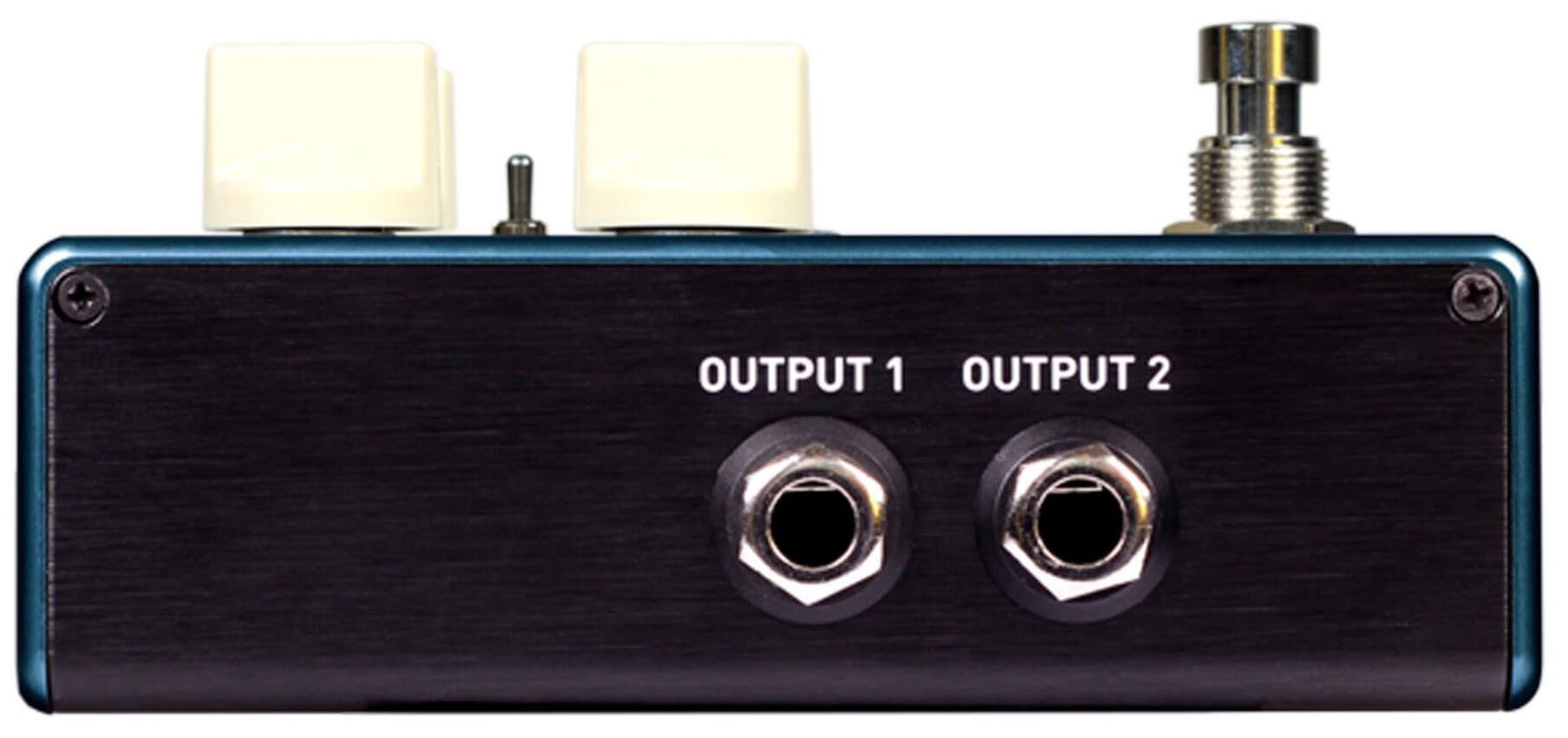

- Dual-channel configuration options: Series, Parallel, Band Split

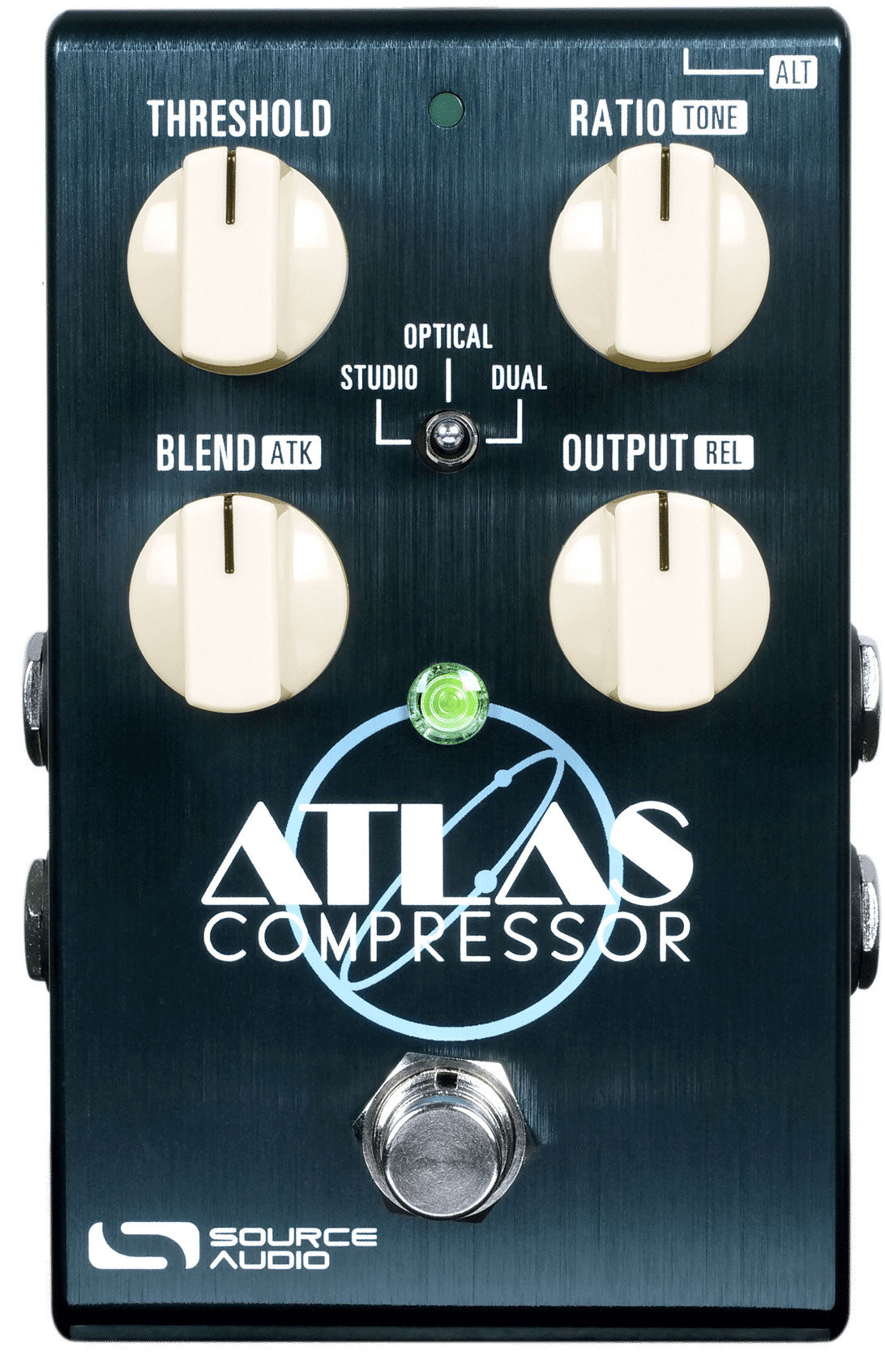

- 4-knob onboard interface with preset selector
- Special Bass Mode for instrument-specific performance
- Neuro Editor for desktop and mobile platforms
- Factory and user-preset support

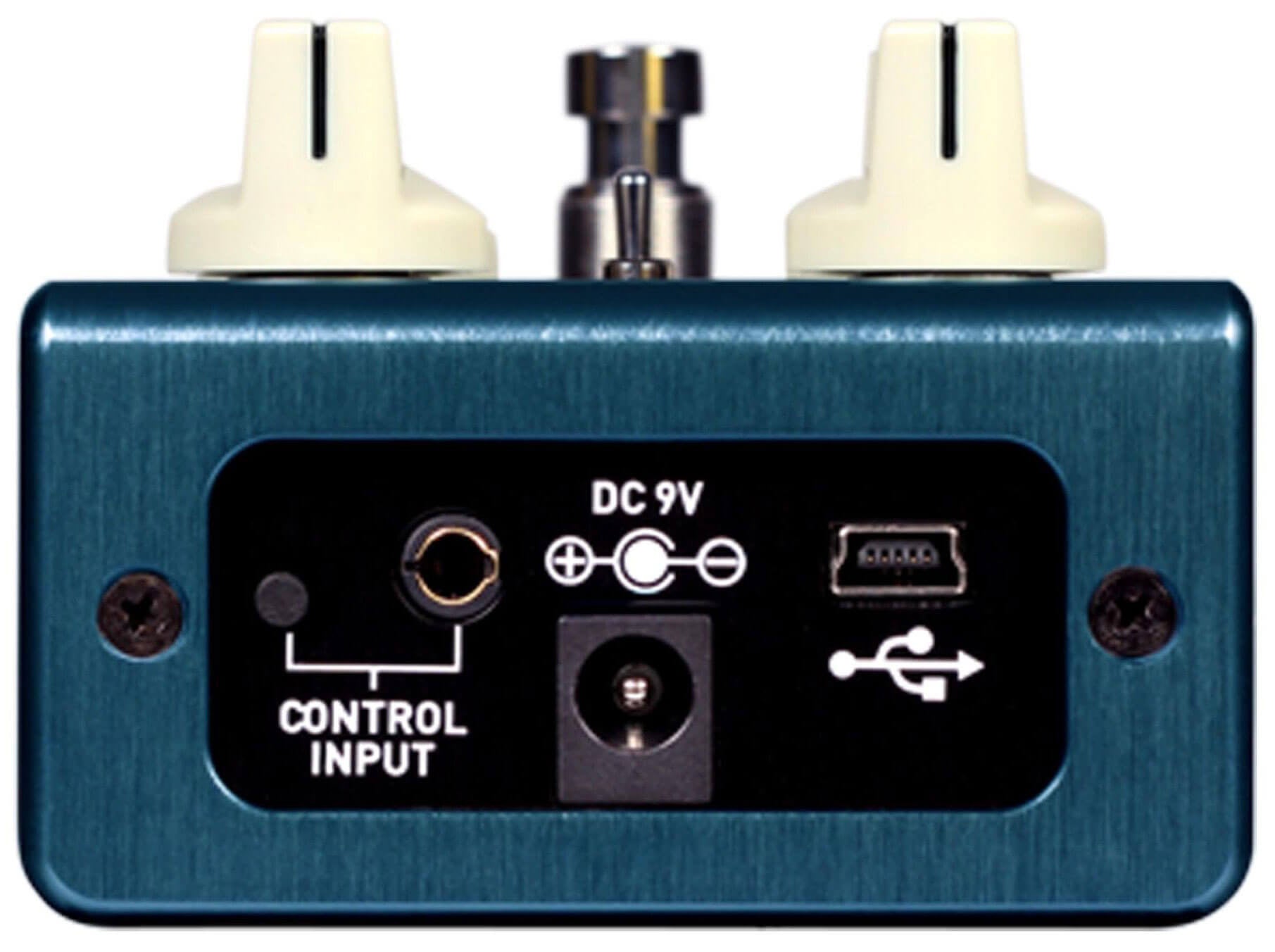

- Compatible with 9V DC power supply (not included)
