Scale SGB-TRS

"Studio Grade" TRS/TRS Balanced Cable
SKU: 115717
GTIN: 7090051112954
Availability: In stock
€12,99
€12,99
Please hurry! Only 150 left in stock
Lenght: 1 m
Subtotal: €12,99
10 customers are viewing this product

Scale SGB-TRS

Scale SGB-TRS

€12,99

Scale SGB-TRS

€12,99
Lenght: 1 m

Our Studio Grade cables are designed to deliver the highest possible performance with outstanding value. We understand that your cables need to sound great and perform reliably, night after night, without costing you a fortune! That’s why we use high-quality 6.5mm braided material that resists bending and tangling. Our proprietary OFC conductor technology and durable shielding are designed to ensure your sound remains crystal clear, free from noise or interference, every time. Each cable is hand-tested before shipping from the factory, and we back our quality with a lifetime warranty, so you can be confident that your Scale Technologies cables will be an integral part of your setup for years to come.

4-Core Twining Process
The 4-core twining process (2 conductors + 2 filled PVC tubes). The advantage of this is that the physical structure of a four-core cable is more stable and produces less noise when the cable is in motion, compared to a dual-core cable.

Features:

  • High-performance balanced TRS cable
  • Unique, high-quality braided outer jacket (6.5mm)
  • Hand-soldered custom 1/4-inch TRS plug with 24K gold-plated contacts
  • Conductor: 28 x 0.10 x 2mm (OFC)
  • PVC coating: 6mm
  • Spiral shielding: 84 x 0.10mm (OFC)
  • 4-core twining process: 4-core twining process (2 conductors + 2 filled PVC tubes)
  • Includes 2 cable straps
  • Lifetime warranty
  • Available in 1 meter, 3 meters, and 6 meters
  • Cable:
    • Type: Custom Tweed Cable
    • Color: black with blue pattern
    • Overall diameter: 6.5 mm +/- 0.1 mm
    • Conductor area: 0.22 mm2 / AWG 24
    • Composition of conductor: 28 x 0.10 mm, bare annealed copper, OFC
    • Conductor insulation: LD-PE Ø 1.35 mm
    • Composition of cores: 4-core twining process, 60 MM one turn, left hand
    • Composition of conductor: 28 x 0,10 mm
    • Filler: Cotton Strand
    • Shield: 84 *0.10 mm, bare annealed copper, OFC
    • Jacket material: Phthalate free PVC with restricted substance
    • Working temperature: Mobile: -5°C to +70°C, Fixed: -20° to +70°C

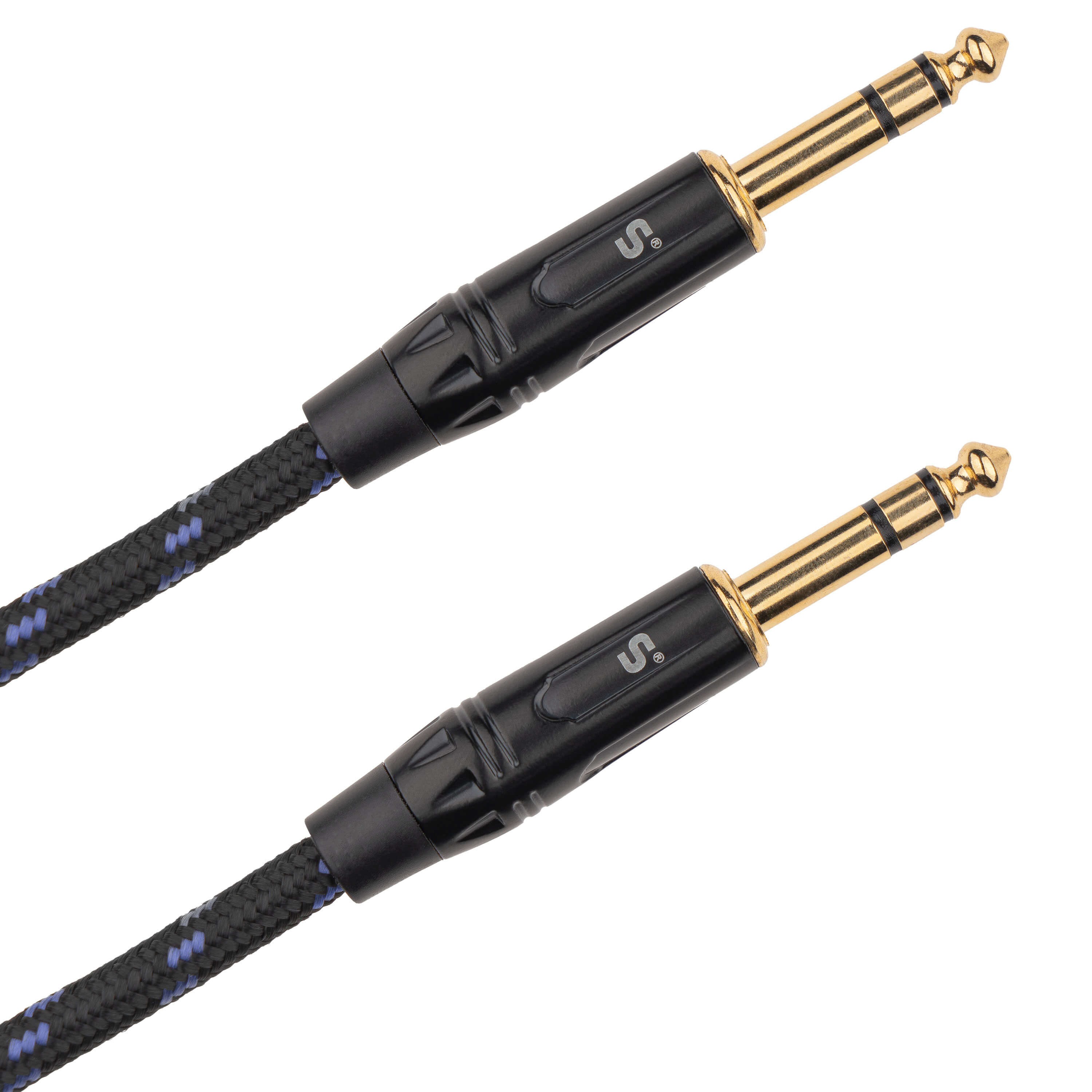

  • Connectors:
    • Model name: SC002 / SC002
    • Product type: TRS male / TRS male
    • Number of poles: 3
    • Contact surface: black
    • Connection type: solder contact
    • Colour: gold
    • Housing: Cast zinc
    • Clamping sleeve: Polyacetal (POM)
    • Temperature range: -30 °C to +80 °C
