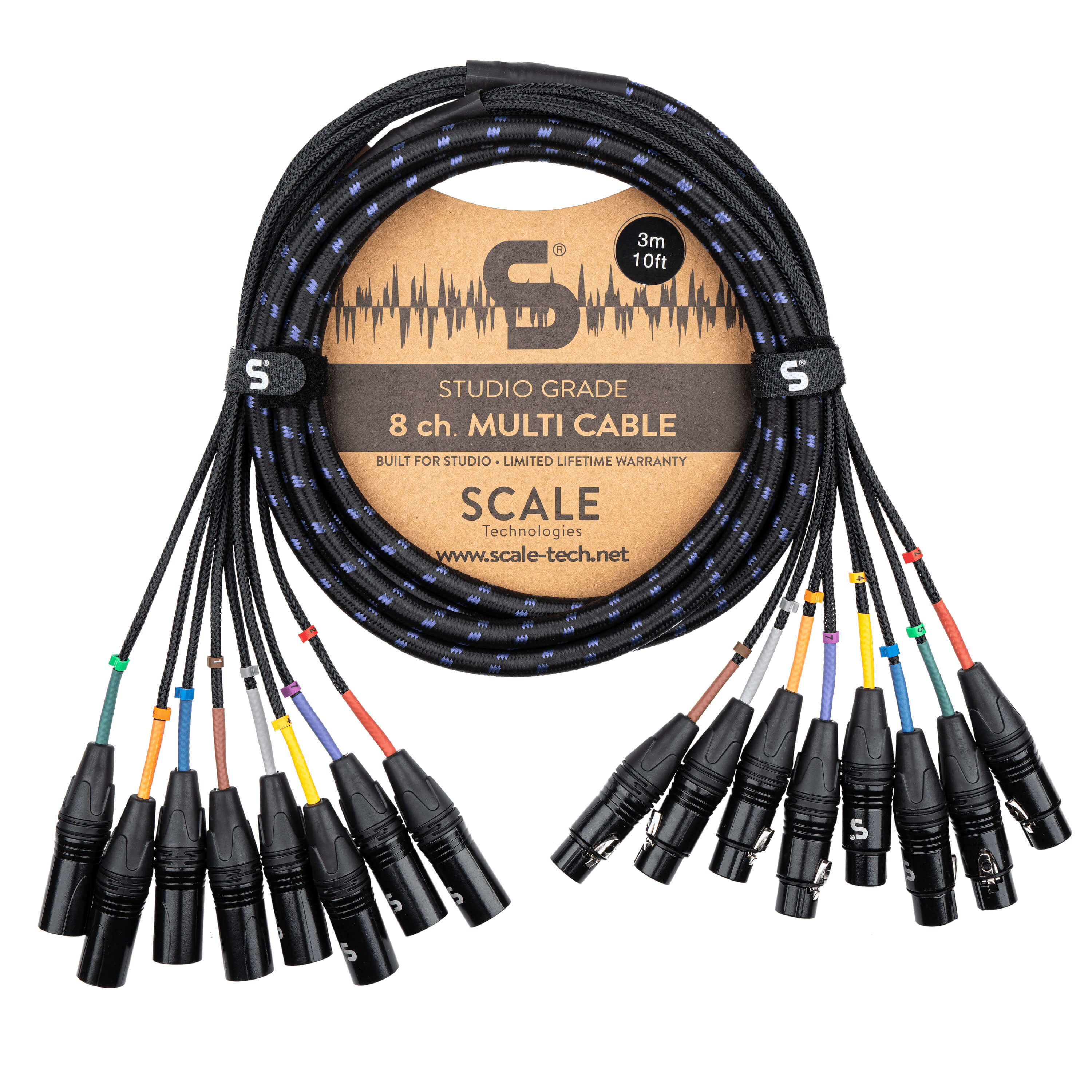

Scale SG8-FM

"Studio Grade" 8-Channel Analog Multichannel Audio Cable XLR Female to XLR Male
SKU: 115704
GTIN: 7090051113234
Availability: In stock
€99,99
€99,99
Please hurry! Only 80 left in stock
Lenght: 3 m
Subtotal: €99,99
10 customers are viewing this product

Scale SG8-FM

Scale SG8-FM

€99,99

Scale SG8-FM

€99,99
Lenght: 3 m

Scale Technologies' multicore cables have been at the forefront of detail-oriented design and construction since day one. To achieve superior signal quality, these cables use high-quality copper. Scale Technologies employs 24 AWG (American Wire Gauge) conductors and ultra-durable connectors to deliver premium sound quality that stands the test of time. Each multicore cable features 100% noise protection, ensuring you hear all your sound—and nothing else. Finally, the cable is wrapped in a solid outer layer that resists regular wear and tear. Scale Technologies' multicore cables represent a step forward in cable construction.

Features:

  • High-performance 8-channel multicable
  • Unique, high-quality woven outer covering
  • Offers superior clarity and freedom from noise/RF interference
  • Channels are individually shielded with numbered, protected jackets
  • Equipped with premium custom-made XLR connectors with gold contacts
  • Flexible for easy handling and connection
  • Hand-soldered connectors
  • Tangle-resistant Techflex braided cover on all fanouts (40 cm)
  • Includes 2 cable straps
  • Lifetime warranty

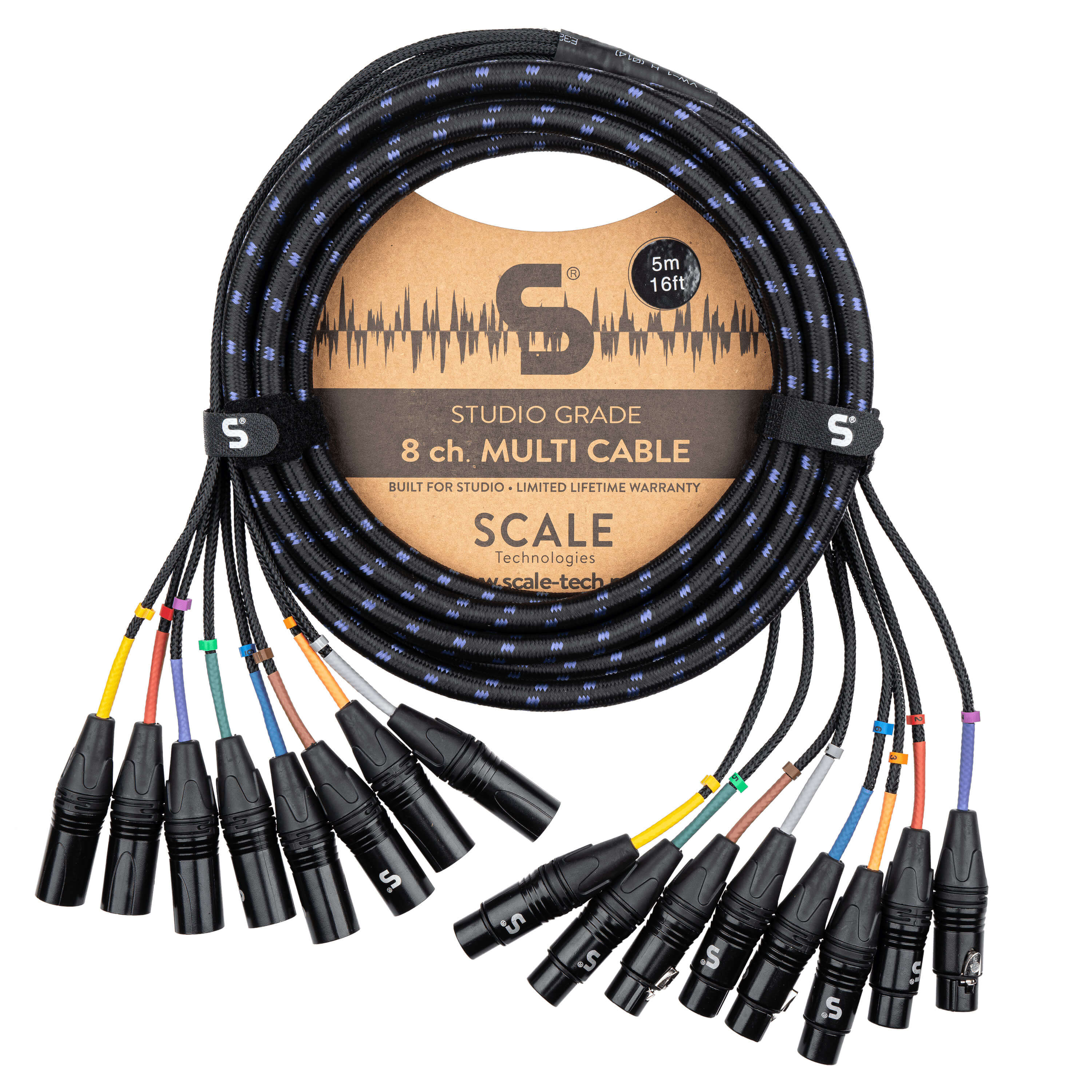

  • Available in 3 meters and 5 meters

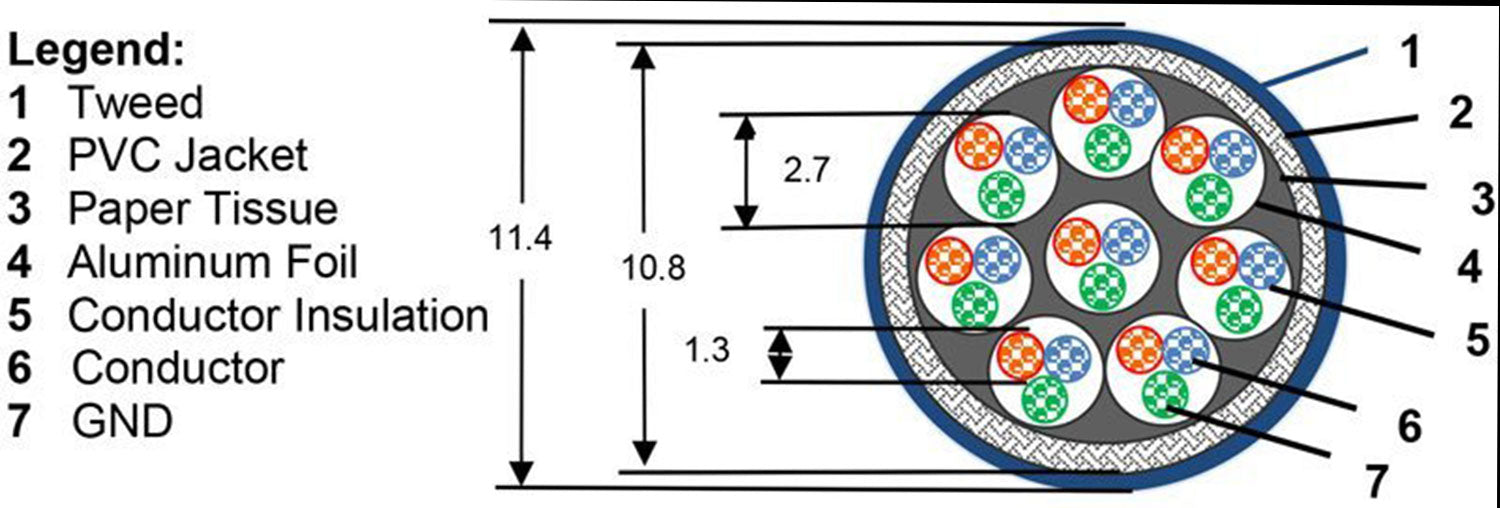

  • Cable:
    • Model: MPX-08M
    • An inner core: 8x2
    • O.D.: 10.8mm
    • outside diameter tolerance: +/-0.4mm
    • Diameter of the inner core: 2.3 + 0.1 mm
    • Conductor area: 0.22 mm2 / AWG 24 / 7x 0.20mm tinned copper
    • Conductor insulation: HDPE DM1. 1 + 0. 1mm
    • Shield: The aluminum foil and grounding wire are used for double shielding
    • Jacket material: Phthalate free PVC with restricted substance
    • 2mm heat-shrinkable tube to protect each internal welding point to the conductor
    • Working temperature: Mobile: -5°C to +70°C, Fixed: -20° to +70°C

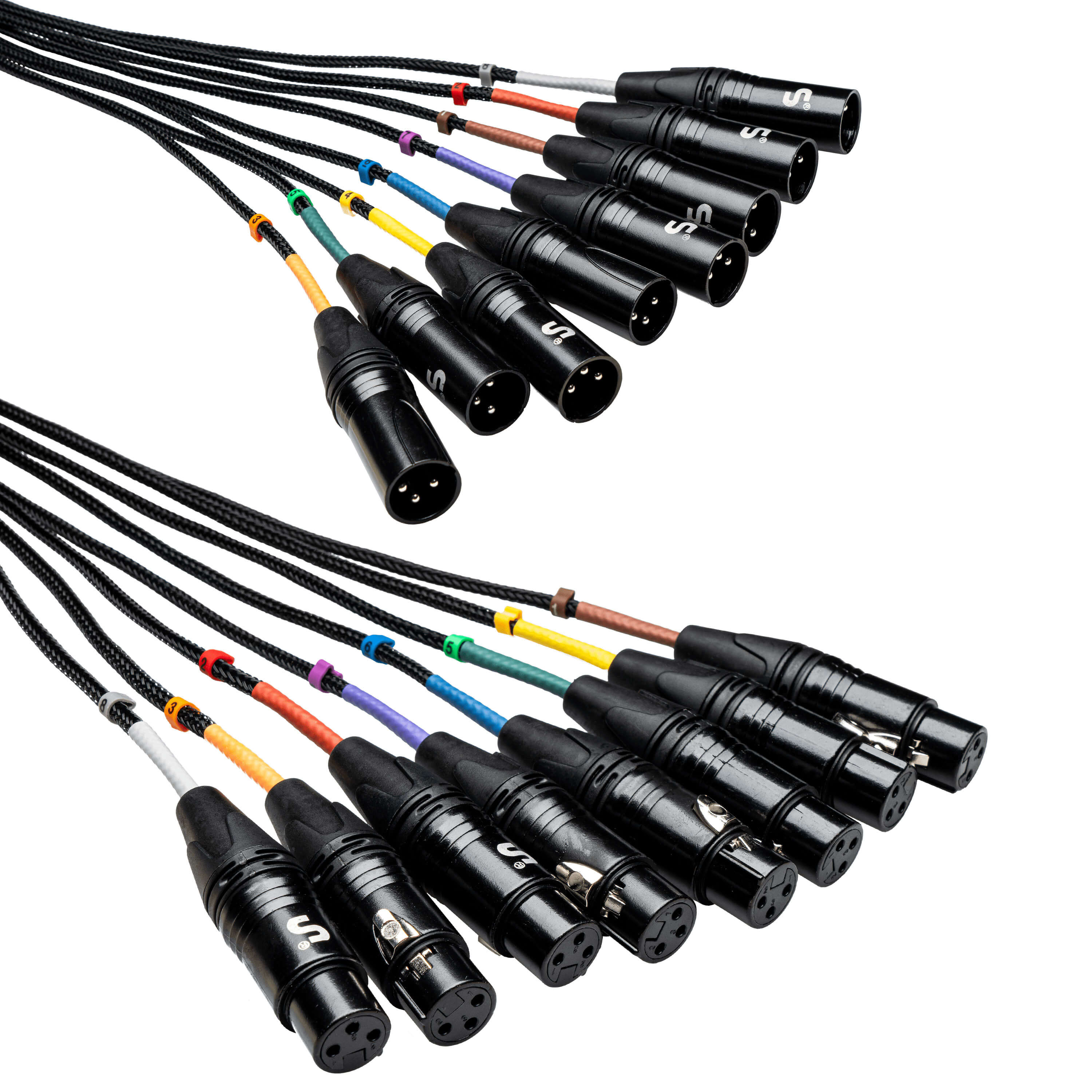

  • Connectors:
    • Model name: SC013 / SC014
    • Product type: XLR-male / XLR-female
    • Number of poles: 3
    • Contact surface: black
    • Connection type: solder contact
    • Colour: gold
    • Housing: Cast zinc
    • Clamping sleeve: Polyacetal (POM)
    • Temperature range: -30 °C to +80 °C
