Scale SG8-DSM

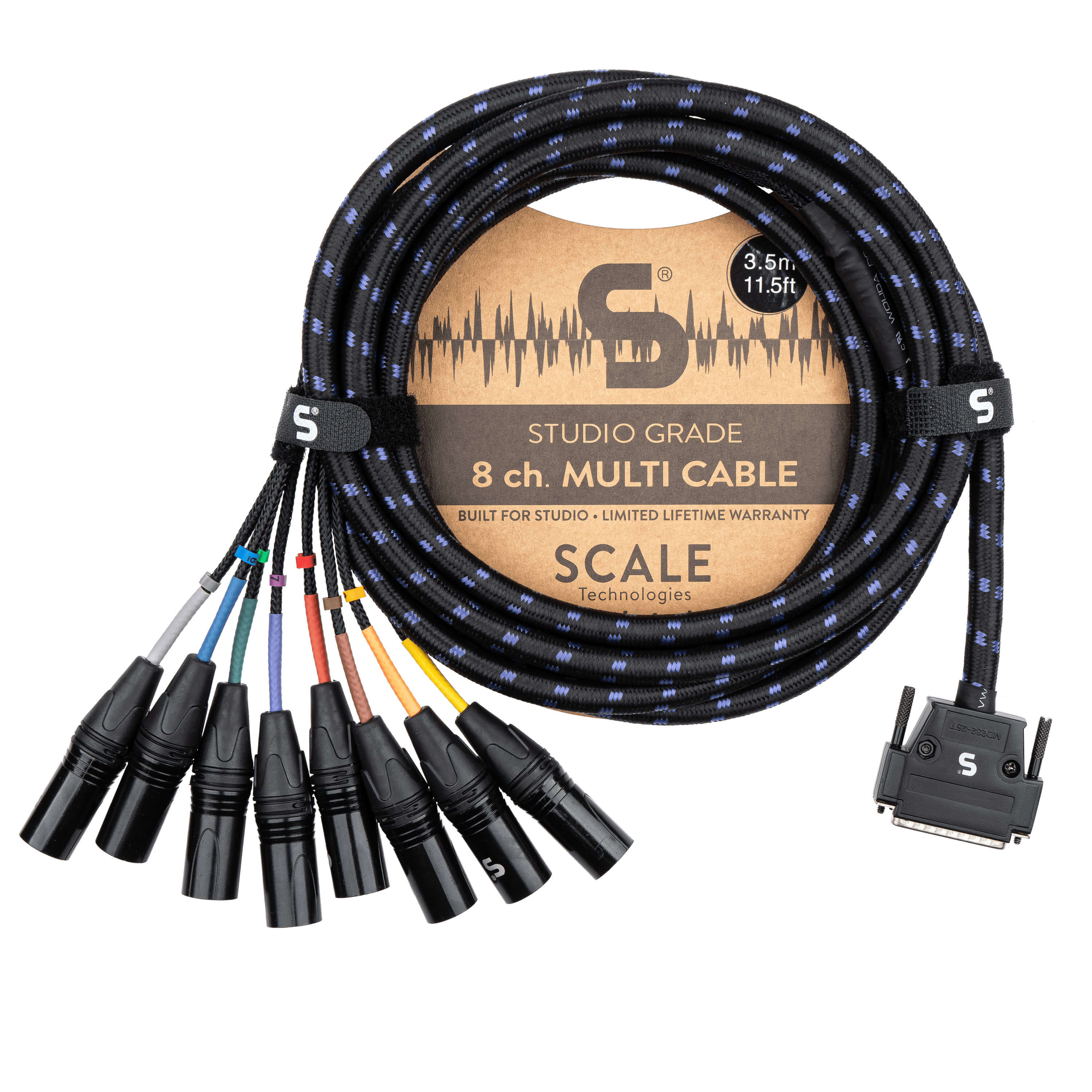

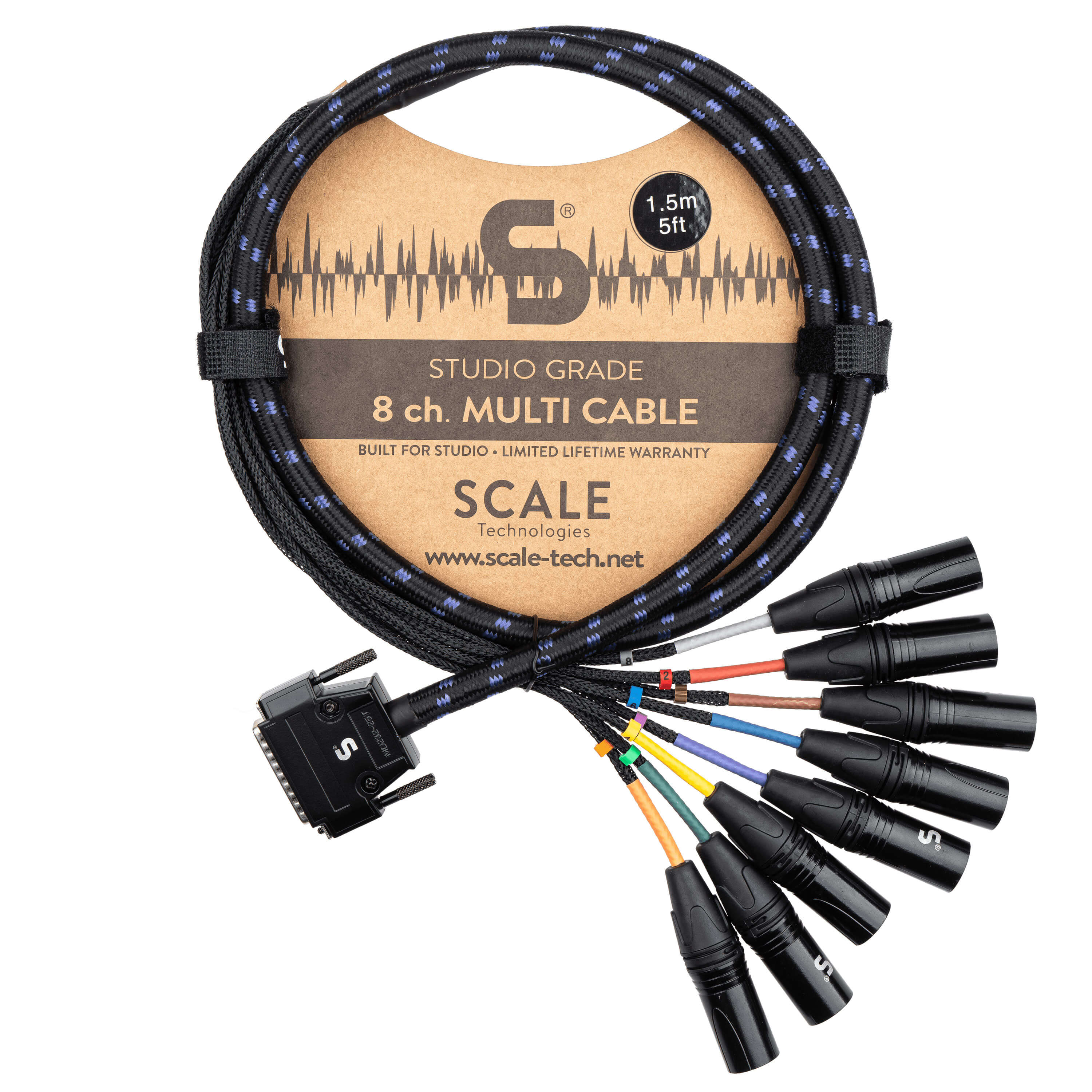

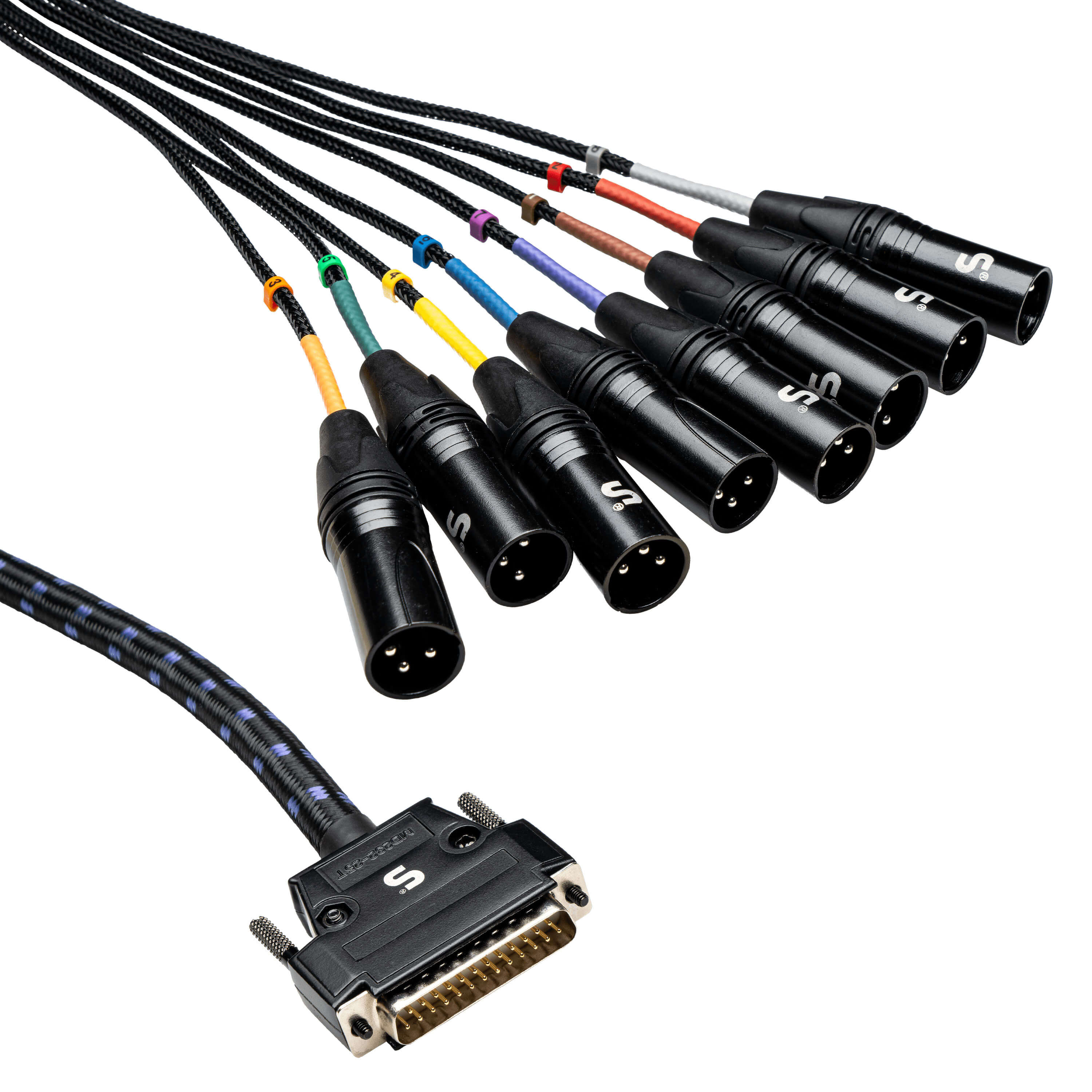

"Studio Grade" 8-Channel Analog Multichannel Audio Cable DB25-XLR Male (Tascam Format)
SKU: 115712
GTIN: 7090051113173
Availability: In stock
€89,99
€89,99
Please hurry! Only 60 left in stock
Lenght: 1.5 m
Subtotal: €89,99
10 customers are viewing this product

Scale SG8-DSM

Scale SG8-DSM

€89,99

Scale SG8-DSM

€89,99
Lenght: 1.5 m

Scale Technologies' multicore cables have been at the forefront of detail-oriented design and construction since day one. To ensure superior signal quality, these cables use high-quality copper. Scale Technologies employs 24 AWG (American Wire Gauge) conductors and ultra-durable connectors to provide you with top-tier sound quality that lasts over time. Each multicore cable features 100% noise protection, ensuring you hear every detail of the sound—and nothing else. Additionally, the cable is wrapped in a solid outer layer that resists normal wear and tear. Scale Technologies' multicore cables represent a breakthrough in cable construction.

Features:

  • Used with nearly all machines and consoles with industry-standard analog pin outputs
  • Tascam DB-25 pin configuration
  • Low-noise, all-metal D-sub shell
  • Combines 8 balanced analog signals into a single connector
  • Hand-soldered, modern pin termination
  • Tangle-resistant Techflex braided cover on all fanouts (40 cm)
  • Easy-to-handle metal thumb screws
  • Includes 2 cable straps
  • Lifetime warranty
  • Available in lengths of 1.5 meters and 3.5 meters
  • Cable:
    • Model: MPX-08M
    • An inner core: 8x2
    • O.D.: 10.8mm
    • outside diameter tolerance: +/-0.4mm
    • Diameter of the inner core: 2.3 + 0.1 mm
    • Conductor area: 0.22 mm2 / AWG 24 / 7x 0.20mm tinned copper
    • Conductor insulation: HDPE DM1. 1 + 0. 1mm
    • Shield: The aluminum foil and grounding wire are used for double shielding
    • Jacket material: Phthalate free PVC with restricted substance
    • 2mm heat-shrinkable tube to protect each internal welding point to the conductor
    • Working temperature: Mobile: -5°C to +70°C, Fixed: -20° to +70°C
  • Connectors:
    • Model name: SC013 / Custom DB25 in metal with gold-plated contacts
    • Product type: XLR-male/ DB25
    • Tascam DB-25 pin configuration
    • Number of poles XLR: 3
    • Contact surface: black
    • Connection type: solder contact
    • Colour: gold
    • Housing: Cast zinc
    • Clamping sleeve: Polyacetal (POM)
    • Temperature range: -30 °C to +80 °C
